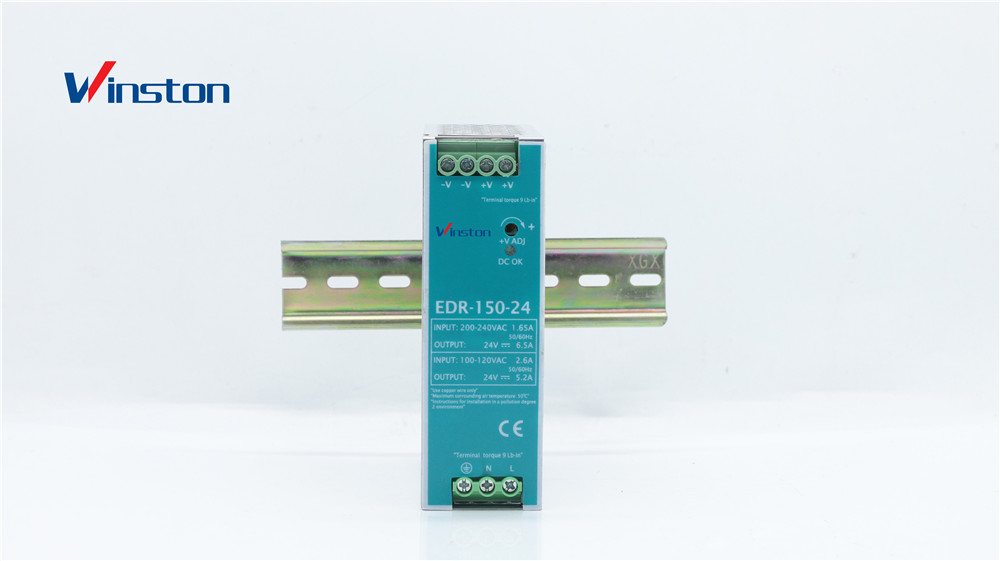

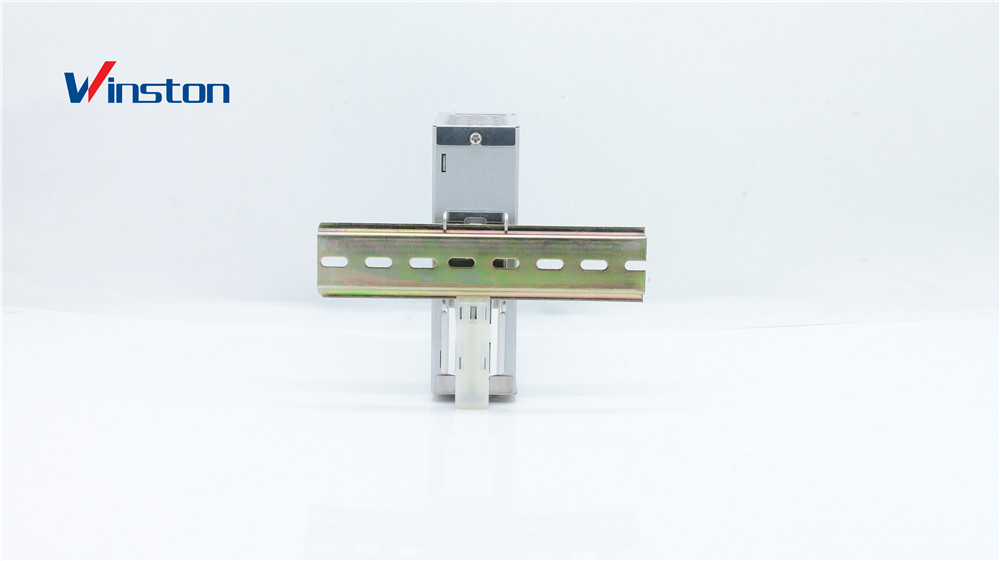

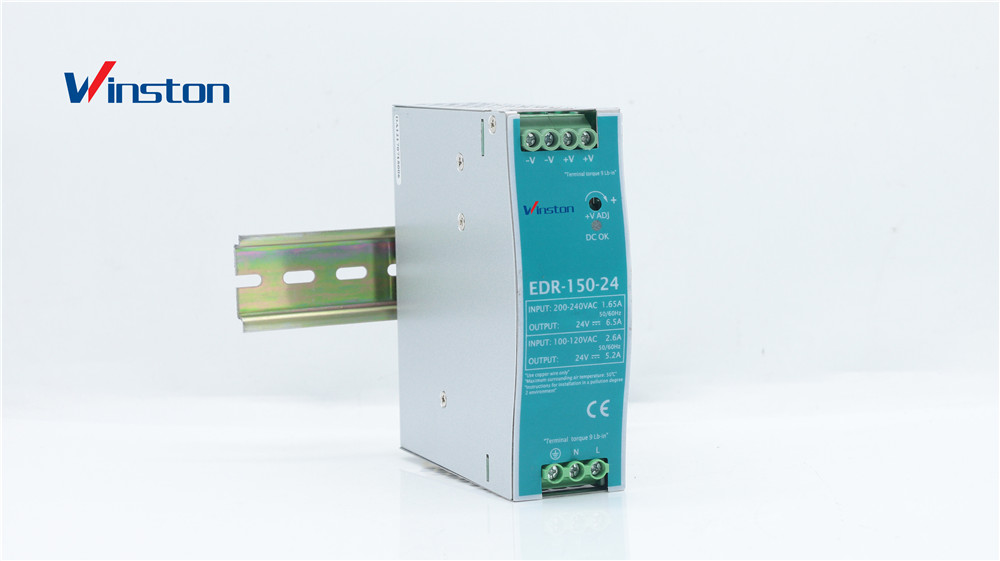

Winston NDR150-24 Single Output 24V 150W Din Rail Switching Power Supply

Winston EDR150-24 Single Output 24V 150W Din Rail Switching Power Supply

  • NDR150-24
  • Winston

Winston NDR150-24 Single Output 24V 150W Din Rail Switching Power Supply


  • Universal AC Input/Full range

  • Protection: short-circuit/ overload/ over voltage/Over temperature

  • Cooling by free air convection

  • Can be (industrial control equipment) listed

  • EN61000-6-2(EN50082-2) industrial immunity level

  • 100% full load burn-in test

  • Low cost

  • 2 years warranty

Model    /   Specification EDR-150-24
OUTPUT DC Voltage 24V
Rated Current 6.5A / 230VAC          5.2A / 115VAC
Current Range 0 ~ 6.5A / 230VAC          0 ~ 5.2A / 115VAC
Rated Power 156W / 230VAC          125W / 115VAC
Ripple & Noise   150mVp-p
(Max) Note 2
Voltage ADJ. Range  24 ~ 28V
Voltage Tolerance Note 3 ± 1.0%
Line Regulation ± 0.5%
Load Regulation ± 1.0%
Setup, Rise Time  1500ms, 60ms/230VAC
 3000ms, 60ms/115VAC at full load
Hold up Time (Typ.) 16ms/230VAC 10ms/115VAC at full load
INPUT Voltage Range 90~264VAC 127~370VDC
(DC input operation possible by connecting AC/L(+),AC/N(-)
Frequency Range 47-63Hz
Efficiency (Typ.) 87.00%
AC Current (Typ.) 2.6A/115VAC          1.7A/230VAC
Inrush Current (Typ.) 20A/115VAC          35A/230VAC
Leakage Current <1mA/240VAC
PROTECTION Overload 105~130% rated output power
Protection type : Constant current limiting,
recovers automatically after fault condition is removed / 230VAC
Over Voltage 29 ~ 33V
Protection type: Shut down o/p voltage, re-power on to recover
Over Temperature Shut down o/p voltage, re-power on to recover
ENVIREMENT Working Temperature `-20℃~+60℃ (Refer to Output "Derating Curve")
Working Humidity  20%~95% RH non-condensing
Storage Temperature  `-40℃~+85℃, 10~95% RH
and Humidity
Temp. Coefficient ±0.03%/°C(0~50°C)
Vibration Component:10~500Hz, 2G 10min/1cycle, 60min.
Each along X,Y,Z axes; Mounting; Compliance to IEC60068-2-6
SAFETY & EMC  Safety Standards  U508, TUV EN60950-1 approved;(meet EN60204-1)
(Note 4)      Withstand Voltage I/P-O/P;3KVAC     I/P-FG;2KVAC   I/P-FG;0.5KVAC
Isolation Resistance I/P-O/P,I/P-FG, O/P-FG;>100M Ohms/500VDC/25℃/70%RH
EMC Emission  Compliance to EN55022 (CISPR22) Class A,
EN61000-3-2, Class A (≤80% Load), EN61000-3-3
EMC Immunity Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024,
EN61000-6-2 (EN50082-2), heavy industry level, criteria A
OTHERS MTBF 472.5K hrs min.      MIL-HDBK-217F (25°C )
Dimension 40*125.2*113.5mm (W*H*D)
Packing 0.6Kg; 20pcs/13Kg/1.16CUFT
