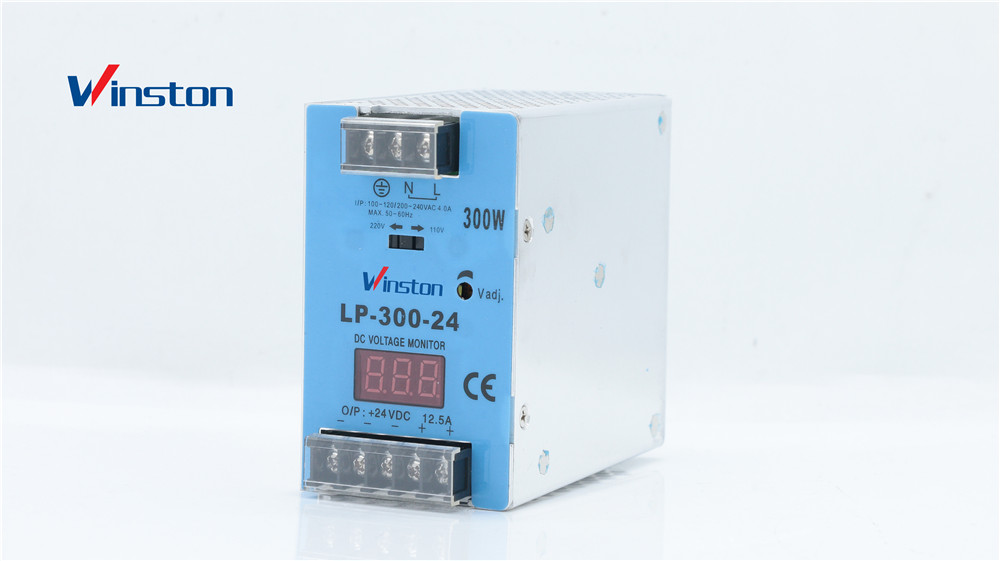

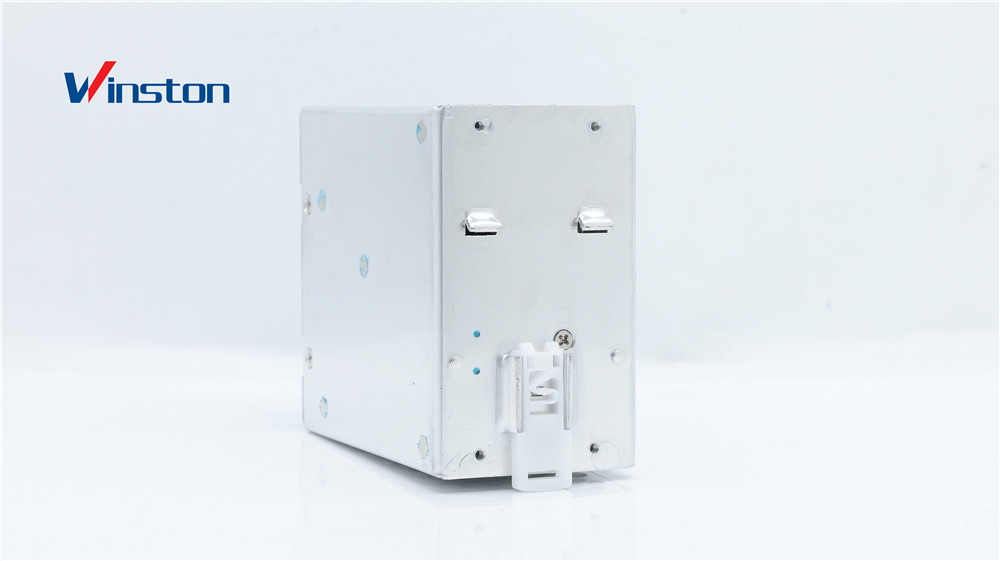

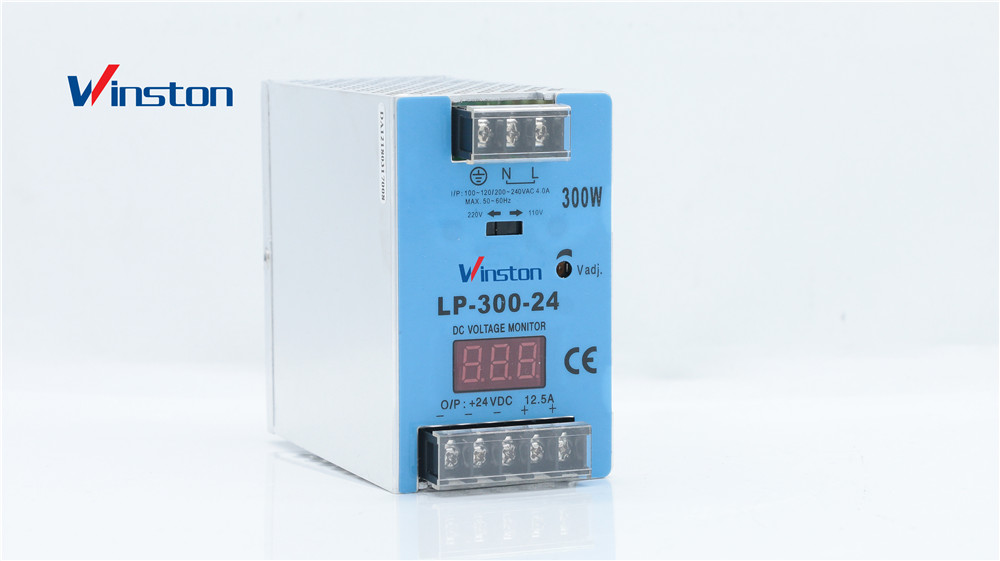

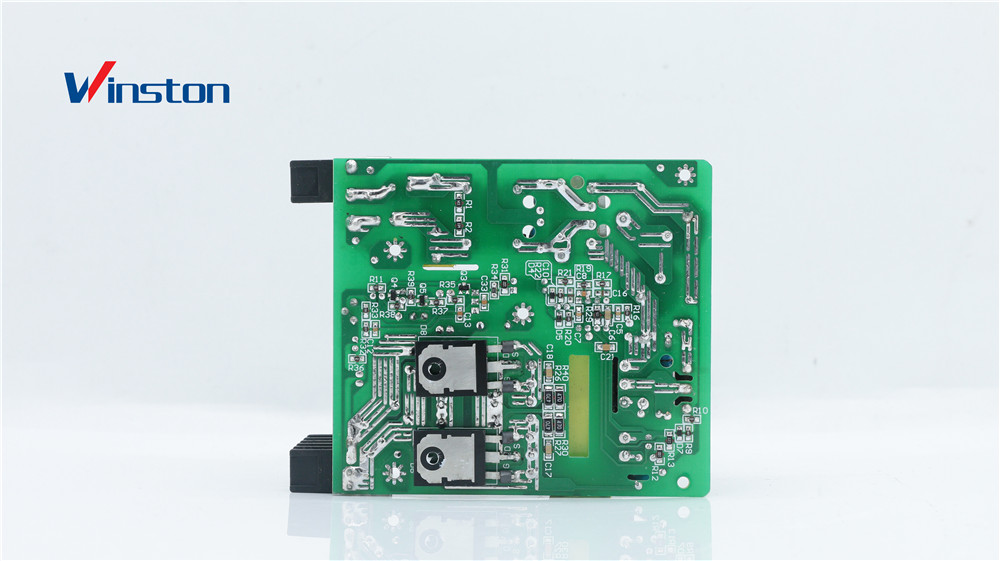

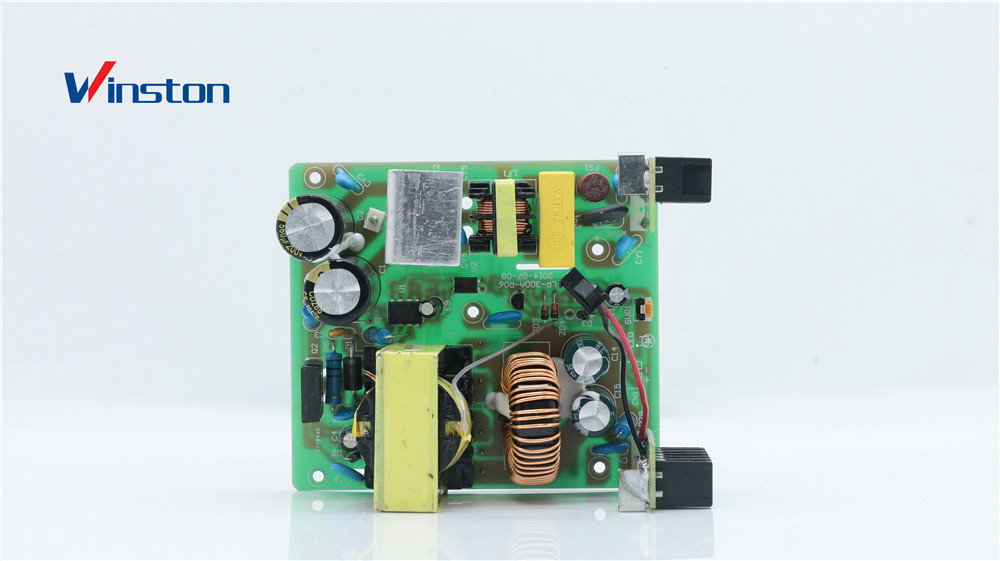

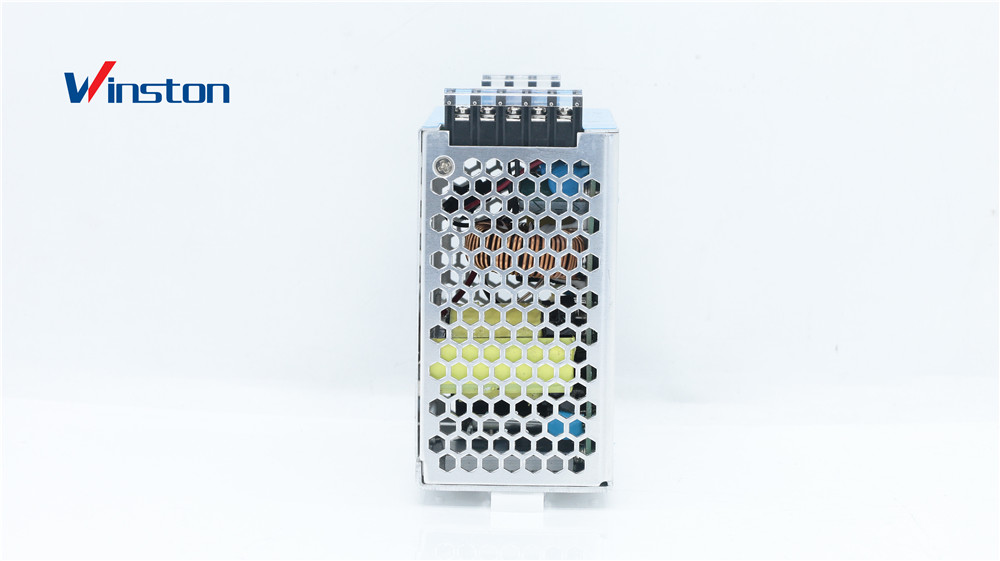

Winston LP300-24 Hot Item 12.5A 24V 300W Single Din Rail Switching Power Supply
Protection charateristic:short circuit/overload/overvoltage
High efficiency,hihg reliability and long serive life.
Natural air cooling
100% full load burning test
LED power indication
Model | LP-300-12 | LP-300-24 | LP300-48 | |
Output | DC Output Voltage | 12V | 24V | 48V |
Output Voltage tolerance | ± 1% | ± 1% | ± 1% | |
Rated Output Current | 23A | 12.5A | 6.25A | |
Output Current Range | 0-23A | 0-12.5A | 0-6.25A | |
DC Output Power | 300 W | 300 W | 300 W | |
Tripple and Noise | 240mVp-p | 240mVp-p | 300mVp-p | |
Adjustable Range for DC Voltage | 10.8-13 V | 20.5-26.5V | 44.5-51V | |
Input | AC Input Voltage Range | 85-132VAC/176-264VAC selected by swith or 248-373VDC 47~63Hz; | ||
AC input current | 3A/115VAC 1.5A/230VAC | |||
Efficiency | 83% | 83% | 85% | |
AC Inrush Current | Cold-Start Current: 15A/115V, 30A/230V | |||
Leakage Current | <2mA/240VAC | |||
Protection charateristic | Overload Protection | 110%-150% | ||
Protection mode: cut off output and reset automatically | ||||
Over Voltage Protection | 11-14V | 22-27V | 45-51V | |
Protection mode: cut off output and reset automatically | ||||
Environment | Work Temperature Humidity | -10℃~+50℃ , 20%~90%RH | ||
Storage Temperature Humidity | `-20℃~+85℃, 10%~95%RH | |||
Shock resistance | 10~500Hz, 2G 10min,/1cycle,duration:60min each shaft | |||
Safety | Voltage withstand capacity | Input-output:2KVAC Input-earth:1.5KVAC Output-earth:0.5KVAC | ||
Insulation resistance | Input-output, Input-earth ,Output-earth:100M Ohms/500VDC | |||
Executive Stantand | Safety Standards | CE | ||
EMC Standards | Design refer to FCC part 15J Conduction Class B | |||
Others | Weight | 0.65KGS | ||
Package | 24pcs/ctn 38*30*28 | |||
size | 100*60*110(L*W*H) | |||
Notes | 1. All parameters except special situtation, are meaured under 230VAC voltage input and rated load at 25℃. 2. The ripple and noise voltage are measured in condition capacitance of 0.1μ and 47μ are applied to ends of 12inch twisted-pair of 20MHZ bandwidth oscilloscope. 3.The tolerance is the sum of setting voltage error , voltage and current regulation factor. | |||
