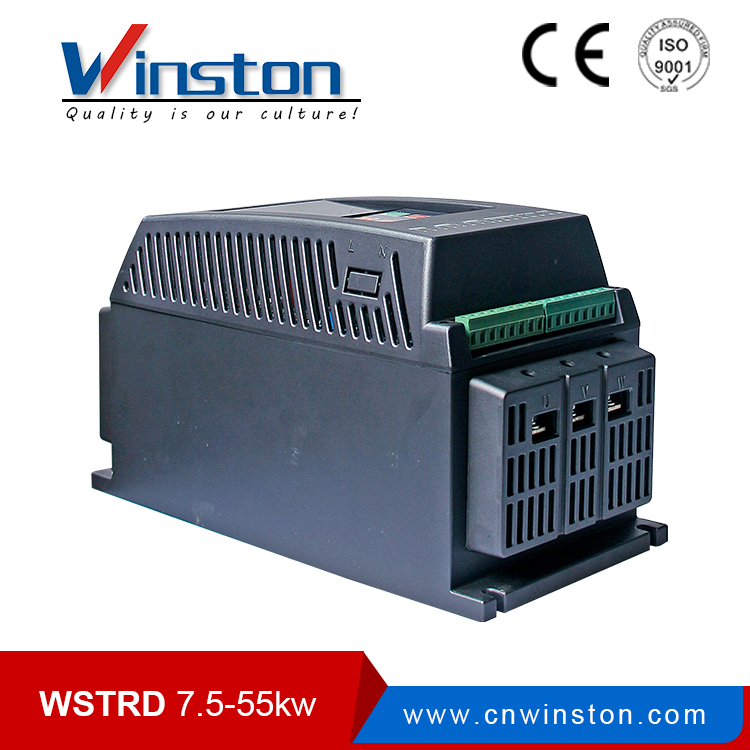

Winston 22KW 380V Motor Soft Drive Soft Starter With CE

Quantity:
  • WSTRD3022
  • Winston

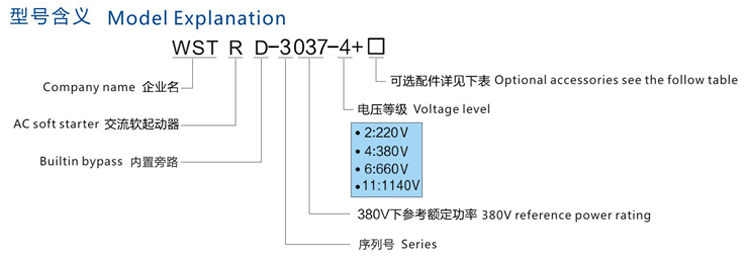

Model Explanation


Soft starter 230V/400V/660V-50/60Hz Rated motor power
Soft Starter Model  Working Max allowable current 220V 380V 660V
WSTRD3018 38 9KW 18.5KW 30KW
WSTRD3022 44 11KW 22KW 37KW
WSTRD3030 60 15KW 30KW 45KW
WSTRD3037 74 18.5KW 37KW 55KW
WSTRD3045 100 22KW 45KW 75KW
WSTRD3055 110 30KW 55KW 90KW
WSTRD3075 150 37KW 75KW 115KW
WSTRD3090 160 45KW 90KW 132KW
WSTRD3115 200 55KW 115KW 160KW
WSTRD3132 250 75KW 132KW 200KW
WSTRD3160 300 90KW 160KW 250KW
WSTRD3200 360 115KW 200KW 355KW
