Widely Used Quad Voltage Output LED Driver Power Supply Unit Q-120W

Availability:
Quantity:
  • Q-120W

  • Winston

Technic data



1.Description

1) High Efficiency, High Reliability, Low Cost
2) AC Input Range:90-132VAC/180-264VAC by switch 254-370VDC
3) 100% Full Load Burn-In Test
4) Protections: Short Circuit / Over Load/Over Voltage
5) LED Indicator For Power On
6) Cooling By Free Air Convection
7) Approvals: CE RoHS
8) 2 Year Warranty.



2.Specification





MODEL


Q-120B

Q-120C

Q-120D

DC VOLTAGE

5V

12V

-5V

-12V

5V

15V

-5V

-15V

5V

12V

24V

-12V

RATED CURRENT

0~11A

0~4A

0~1A

0~1A

0~10A

0~3.5A

0~1A

0~1A

0-8A

0~2A

0~2A

0~1A

RIPPLE&NOISE

80m
Vp-p

120m
Vp-p

80m
Vp-p

120m
Vp-p

80m
Vp-p

150m
Vp-p

80m
Vp-p

150m
Vp-p

80m
Vp-p

120m
Vp-p

180m
Vp-p

120m
Vp-p

EFFICIENCY

77%

76%

80%
LOAD STABILITY
±0.5%

±5%

±5%

±5%

±0.5%

±6%

±5%

±6%

±5%

±5%

±5%

±5%

LINE REGULATION

±0.5%

±1%

±1%

±1%

±0.5%

±1%

±1%

±1%

±0.5%

±1%

±1%

±1%

ADJUSTABLE
RANGE FOR DC VOLTAGE

±10%

±5%

±5%

±5%

±10%

±5%

±5%

±5%

±10%

±5%

±5%

±5%

SETUP,RISE,HOLD
UP TIME

200ms,50ms,20ms/230VAC at full load

VOLTAGE
RANGE

90-132VAC/180-264VAC by switch 254-370VDC

FREQUENCY
RANGE

47-63HZ

IMPACT CURRENT

Cold start current 35A/230VAC

OVERLOAD
PROTECTION

105-150% cut off the output, automatic recovery

OVER VOLTAGE PROTECTION
CH1:115-135% shut down O/P voltage ,re-power on to recover.

WORKING TEMP

-10~ +50°C

WITHSTAND
VOLTAGE

I/P-O/P:1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute

ISOLATION
RESISTANCE

I/P-O/P,I/P-FG,O/P-FG:500VDC/100M Ohms

DIMENSION

199*110*50mm

WEIGHT

0.9kg

PACKING
42*31.5*26cm/20pcs/16kg

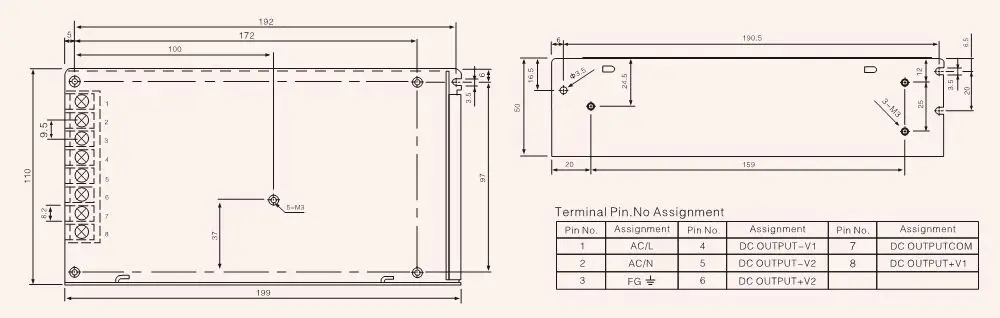

Dimension
