Waterproof Single Output Power Supply Apply To LED Light - LPV 200W

LPV-200 Waterproof Power Supply Voltage : 12V, 24V. Input voltage: 180~264VAC, 254~370VDC. Protection degree: IP67
Availability:
Quantity:
  • LPV-200

  • Winston

Features

·Constant voltage style power supply

·180~264VAC AC input ·Small volume,low weight,high efficiency ·Protections:short circuit/over load/over voltage/over temp

·Cooling by free air convection

·Fully encapsulated with IP67 level

·100% full load burn-in test ·1 Year warranty

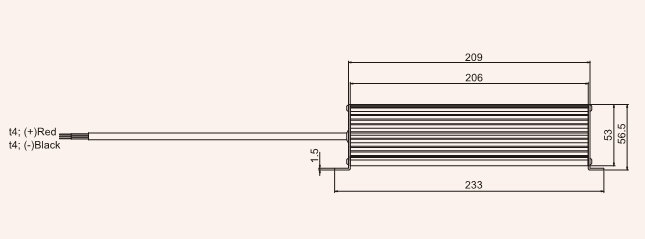

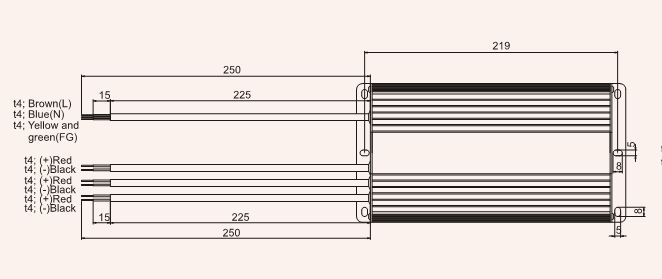

Dimension




Package

POWER SUPPLY PACKAGE


       Model       LPV-200-12       LPV-200-24
       output       DC voltage       12V       24V
       Voltage tolerance       ±1%       ±1%
       Current range       0~16.5A       0~8.3A
       Ripple&noise       150mvp-p       200mvp-p
       input       Voltage range       180~264VAC,255~373VDC
       Frequency       47~63HZ
       AC current       2.5A/230VAC
       Efficiency       82%       84%
       Inrush current       Cold start current 40A/230VAC
       Leakage current       <2.5mA/240VAC
       protection       Over load       Rated output power 105%~135%start over load protection
       Protection type:hiccup mode,auto-recovery after fault condition is removed
       Over voltage       15.6~17.8V       30.6~33.2V
       Protection type:hiccup mode,auto-recovery after fault condition is removed
       Over temperature       Shell temp≥85℃,start over temperature protection
       Protection mode:cutoff output,auto-recovery after temperature become normal
       environment       Working temp,humidity       -10℃~+60℃,20%~90%RH
       Storage temp.humidity       -20℃~+85℃,10%~95%RH non condensing
       Withstand vibration       10~500HZ,2G 10min/1cycle,period for 60minutes,each axes
       safety       Withstand voltage       I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
       Isolated resistance       I/P-O/P、I/P-FG、O/P-FG:100M ohms/500VDC
       Fits       Safety standard       Fit UL1012,IP67 protect level

       tandard       EMC standard       Fit EN55022,CLASSA
       Others       Dimension       240*69*43mm (L*W*H)
       Weight/packing       1.26kg/20pcs/26kg/0.033 m³/1.15CUFT
