WST-08 Multifunction LCD Dispaly Programmable Room Thermostat

Quantity:
  • WST-08
  • Winston
Model

WST-08 (WST-8AH WST-08BH)

Measure range0~40 Celsius
Current3A    10A   16A
Temperature control Accuracy +/-1 Celsius
Power supply85-250VAC 50/60Hz
Power consumption<1W
Sensor typeNTC  B=3380 10K@25Celsius
Control modeheating
TypeLarge LCD display + back lighting
Sensor QTY2 PCS
Multi. periods programe5+2/6+1/7
Body materialAntiflaming PC
Dimensions86*86*12mm
Weight170g/PCS
ColorWhite / Black

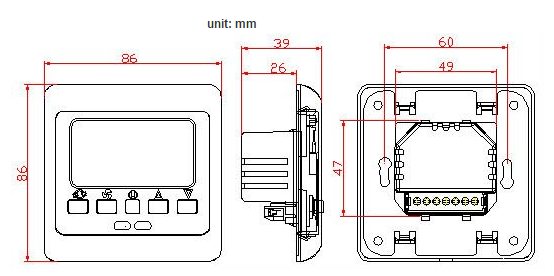

WST08 dimension.png
