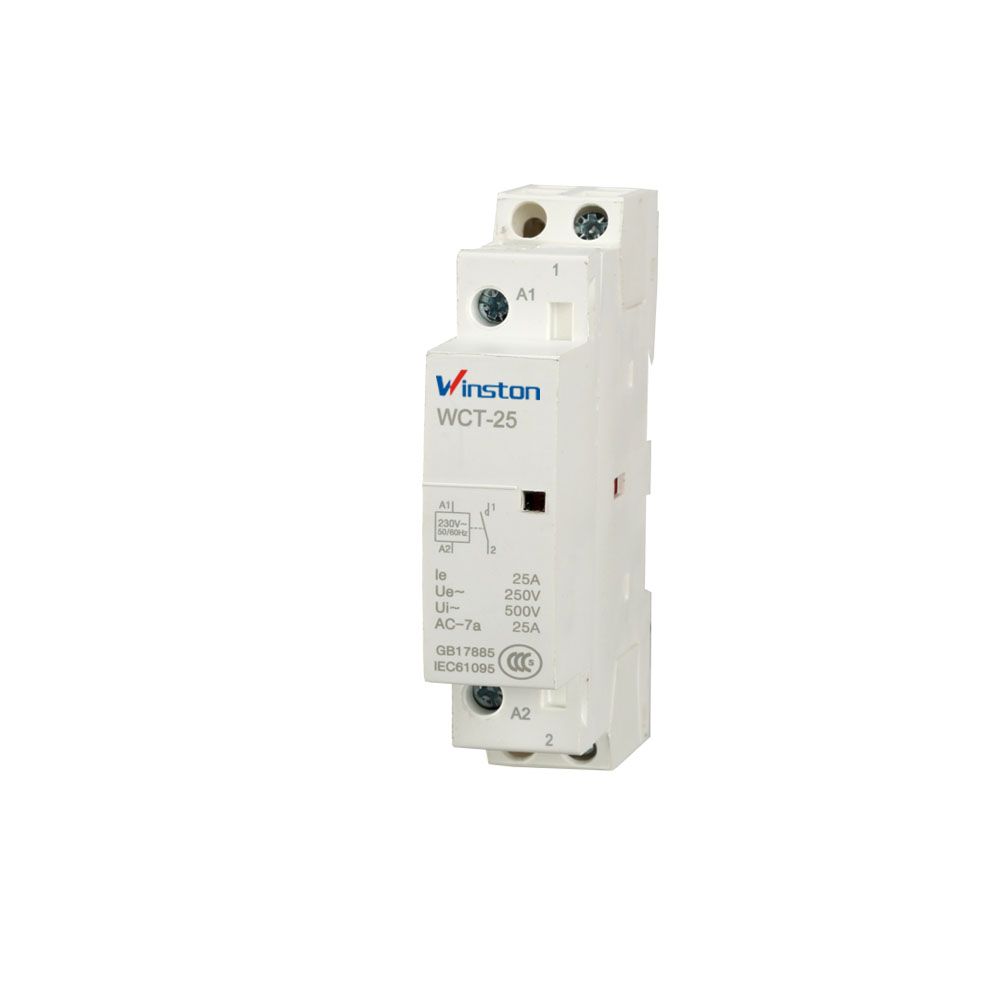

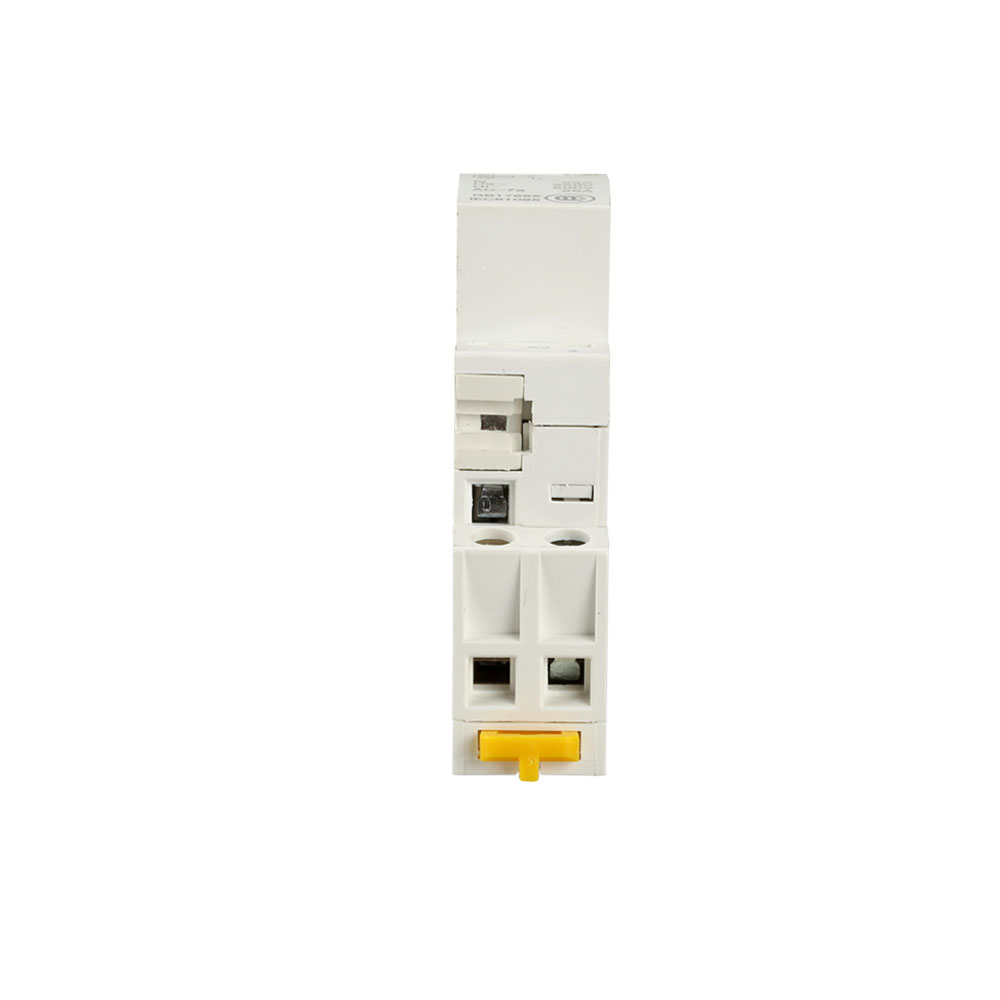

WCT 25A 1P 1NO AC Contactor

Quantity:
  • WCT 25A 1P 1NO
  • CE
  • Winston/OEM
  • Made in China
  • Carton size: 455*230*240mm, 180pcs/CTN
  • PCS
  • 10
  • 2-5days
  • 1
  • T/T
WCT series home AC contactor is a kind of control electric appliance which is used for long distance switch on and break off sense or low load, electric resistance furnace, household appliances and similar application.

Attention

1. Confirm whether the product voltage, current, frequency and use category meet the requirements before use;
2. Connect the control circuit first for no-load operation test and then connect the load in case of no abnormality;
3. Regularly tighten the terminals and remove the deposited dust;
4. Don't make the foreign matters fall into the product

Conditions of Working & Installations:

 Temperature: 5℃~+40℃,AVG not over within 24h+35℃
 Altitude: not over 2000m.
 Atmospheric conditions: RH+40℃ not over 50% under,RH can be for 90% under +20℃, In dewing,it should be taken special precautious.
 Class of pollution: 2
 Installation type: II
 Mode of installations: TH35-7.5 types steel DIN-RAIL
 IP Grade: IP20


advantage 1 advantage 2
1P

Consumption


       WCT contactors-50Hz
               Raring(In)        Control voltage(V AC)(50Hz)        Consumption        Max.
       power
       AC7a        Holding        Inrush
       1P        25A        220        3.8 VA        15 VA        1.3W
       230...240        2.7VA        9.2VA        1.3W

Dimension
16a25a dimension

分解图3
