SSR- 10AA electronics solid state relay circuit

Availability:
Quantity:
Inquire Add to Basket

  • SSR-10AA

  • Winston

SSR- 10AA electronics solid state relay circuit


Dimension

ssr10aa dimension.jpg


Dimension 57.5L*44.8W*31.5H
Load Voltage 24V~280VAC/380VAC/480VAC,5-60VDC(DD)
Load Current 5-90A
Input Voltage A,D,R,DD
Dielectric Strength 2500VAC
Insualtion Resistance ≥50M
On Voltage ≤1.6V
Off Leakage Current ≤5mA
On-off Time ≤10mS
Ambient Temperature -30℃~+70℃
Huminity 35%~85%
Weight ≈125g

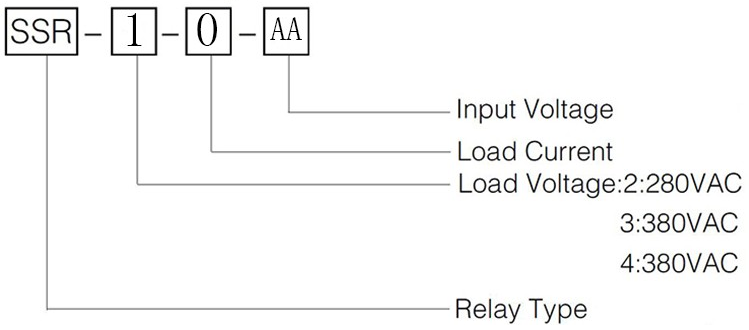

 Input Voltage

SSR-AA(A) 80-250VAC
SSR-DA(D) 3-32VDC
SSR-VA(R) 470KΩ/2W
SSR-DD(DD) 3-32VDC
