SM18-31010NA;SM18-31010NB;SM18-31010PA;SM18-31010PB
Winston/OEM
9033000090
SM18 Hall sensor
SM series Hall sensor is a kind of magnet-sensitive sensor consisting of voltage regulator, Hall voltage generator, differential amplifier, Schmidt trigger and the output pole of collector open circuit. Its input is the magnetic flux density. The output is adigital voltage signal.
Features:
1.Wide mains voltage range
2.High frequency
3.Long service life,compact volume and convenient installation
4.Directly connect to transistor and logic circuit port like, TTL.MOS
Model explanation of the proximity switch:
1.Switch category: LM:inductance type CM:capacitance type SM:Hall type AM:safte explosion-proof type XM:Mini linear type HM:Reed type RU:Ultrasonic type | 5.Output form: N:Three wire dc NPN output P:Three wire dc PNP output L:Two wire dc output :Two wire ac output J:Relay contact output NP:NPN+PNP double output |
2.Outward appearance code: C:Cylinder type; F:Angular column type and plane installation type) | 6.Output state: A:Normally open(NO) B:Normally close(NC) C:Normally open(NO)+Normally close(NC) MU:Mimic voltage MI:Mimic current MUI:Voltage and current double output |
3.Working voltage: 30:6~36VDC 310:5~24VDC 320:12~60VDC 330:10~30VDC 340:10~55VDC 350:10~60VDC 360:5~36VDC 20:90~250VAC 210:24~250VAC 220:380VAC 40:12~240VDC/24~240VAC 50:Special voltage | 7.Subsidiart functions: T:with aviation connector Y:water proof,oil proof I:Special requirement H:High temperature resistance R:Ring type |
4.Detection distance: 01:1mm 05:5mm 10:10mm ...... | 8.Long distance L:Long distance |
SM18 Hall sensor
SM series Hall sensor is a kind of magnet-sensitive sensor consisting of voltage regulator, Hall voltage generator, differential amplifier, Schmidt trigger and the output pole of collector open circuit. Its input is the magnetic flux density. The output is adigital voltage signal.
Features:
1.Wide mains voltage range
2.High frequency
3.Long service life,compact volume and convenient installation
4.Directly connect to transistor and logic circuit port like, TTL.MOS
Model explanation of the proximity switch:
1.Switch category: LM:inductance type CM:capacitance type SM:Hall type AM:safte explosion-proof type XM:Mini linear type HM:Reed type RU:Ultrasonic type | 5.Output form: N:Three wire dc NPN output P:Three wire dc PNP output L:Two wire dc output :Two wire ac output J:Relay contact output NP:NPN+PNP double output |
2.Outward appearance code: C:Cylinder type; F:Angular column type and plane installation type) | 6.Output state: A:Normally open(NO) B:Normally close(NC) C:Normally open(NO)+Normally close(NC) MU:Mimic voltage MI:Mimic current MUI:Voltage and current double output |
3.Working voltage: 30:6~36VDC 310:5~24VDC 320:12~60VDC 330:10~30VDC 340:10~55VDC 350:10~60VDC 360:5~36VDC 20:90~250VAC 210:24~250VAC 220:380VAC 40:12~240VDC/24~240VAC 50:Special voltage | 7.Subsidiart functions: T:with aviation connector Y:water proof,oil proof I:Special requirement H:High temperature resistance R:Ring type |
4.Detection distance: 01:1mm 05:5mm 10:10mm ...... | 8.Long distance L:Long distance |

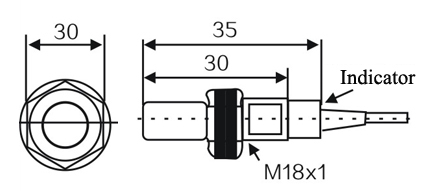

OVERALL DIMENSIONS | |
Detection distance | 10mm |
Mains voltage | 5~24VDC |
Detectable object | Permanent magnet |
Output low level voltage | 200mV |
Output high level current | O.1uA |
Mains current | 8mA |
ON-OFF frequency | 320KHz |
Working point magnetic density | 22mT |
Shell materia | Metal |
Ambient temperature | -25℃-70℃ |
Protection structure | IEC standard lp67 |
Model available | SM18-31010NA |
NPN NO | |
PNP NO | SM18-3101OPA |
NPN NC | SM18-31010NB |
PNP NC | SM18-31010PB |
OVERALL DIMENSIONS | |
Detection distance | 10mm |
Mains voltage | 5~24VDC |
Detectable object | Permanent magnet |
Output low level voltage | 200mV |
Output high level current | O.1uA |
Mains current | 8mA |
ON-OFF frequency | 320KHz |
Working point magnetic density | 22mT |
Shell materia | Metal |
Ambient temperature | -25℃-70℃ |
Protection structure | IEC standard lp67 |
Model available | SM18-31010NA |
NPN NO | |
PNP NO | SM18-3101OPA |
NPN NC | SM18-31010NB |
PNP NC | SM18-31010PB |
