S-35 single output 220/230vac 5V 12V 15V 24Vdc 35W switching mode power supply With 2 years Warranty

Quantity:
  • S-35-5 S-35-12 S-35-15 S-35-24
  • WINSTON
Technical Data



Low price and high reliability
105°C output capacitor
AC input power suitable for the world
Hight efficiency and low operation temperature
Compact size,light weight
100% full-load burning test
Installed with EMI filter,minimum wave



Model S-35-5 S-35-12 S-35-15 S-35-24
Output DC Voltage 5V 12V 15V 24V
Current Range 0~7A 0~3A 0~2.4A 0~1.5A
Wave & Noise 70mVp-p 100mVp-p 100mVp-p 100mVp-p
Voltage Adj.Range ±10% ±10% ±10% ±10%
Line wave stability ±0.5% ±0.5% ±0.5% ±0.5%
Load  stability ±1.0% ±0.5% ±0.5% ±0.5%
Setup,Rise time 200ms, 100ms 30ms/230VAC  at full load
Input Voltage Range 90 ~ 132VAC          180 ~ 2640VAC 47~63HZ
Efficiency 70%/115VAC 76%/115VAC 78%/115VAC 78%115VAC
AC Current 0.6A/115VAC          0.35A/230VAC
Impact Current Cold Start 18A/115VAC          36A/230VAC
Leakage Current <0.75mA / 240VAC
Protection Over Load 105 ~ 150% Cut off the output, Automatic Recovery
Environment Working Temperature -10 ~ +50°c (Refer to "Derating Curve" )
Working Humidity 20~90% RH  Non-condensing
Temp. coefficient ±0.03%/°C (0~50°C)
Safety Withstand Voltage I/P-O/P:1.5KVAC     I/P-FG:1.5KVAC     O/P-FG:0.5KVAC
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/ 25°c / 70% RH
Others Dimension 129*98*38mm (L*W*H)
Packing 43*32.5*24cm/45pcs/218kg

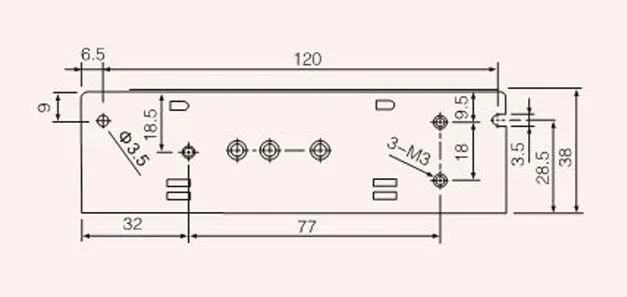

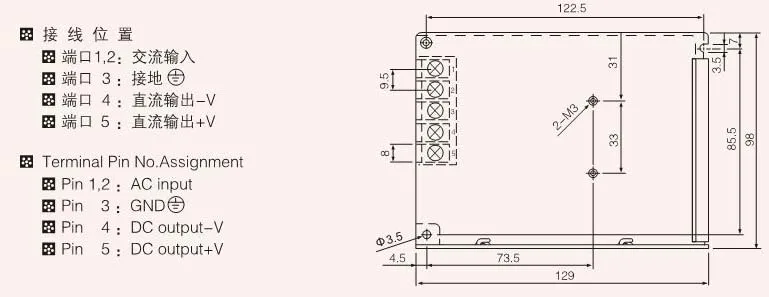

Dimension
