RCE 016
Winston
1.Compact size
2.Wide voltage range

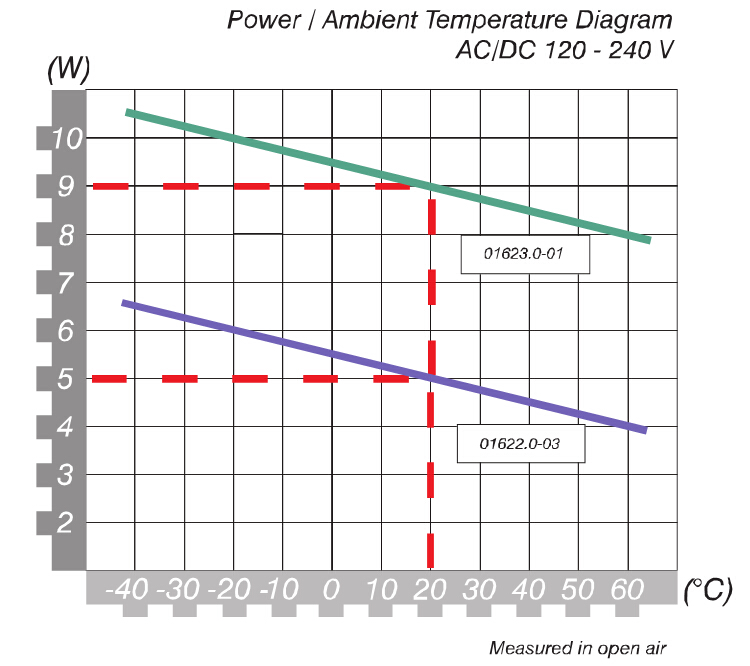

3.Heating power adjusts to ambient temperature
4.Energy saving
The RCE 016 small heaters have been designed to prevent condensation and to ensure a minimun operating temperature in small enclosures .
Part No. | Heating caoacity 1) | Operating voltage 2) | Max.current (inrush) | Surface temperature (approx.)1) | Weight(approx.) |
01622.0-03 | 5W | AC/DC 120-240V | 2.0A | 329℉ (165℃) | 0.7 oz. (20g) |
01623.0-01 | 9W | AC/DC 120-240V | 2.5A | 347℉ (175℃) | 0.7 oz. (20g) |
01624.0-03 | 5W | AC/DC 12-30V | 5.8A | 284℉ (140℃) | 0.7 oz. (20g) |
01625.0-02 | 9W | AC/DC 12-30V | 2.4A | 360℉ (182℃) | 0.7 oz. (20g) |
1) at 68℉ (20℃) ambient temperature. | |||||
2) operating with voltages below AC/DC 140V reduces heating performance by approx. 10%(min.110V, max 265V). |
