T-120W
Winston
1) High Efficiency, High Reliability, Low Cost
2) AC Input Range:90-132VAC/180-264VAC by switch 254-370VDC
3) 100% Full Load Burn-In Test
4) Protections: Short Circuit / Over Load/Over Voltage
5) LED Indicator For Power On
6) Cooling By Free Air Convection
7) Approvals: CE RoHS
8) 2 Year Warranty.
2.Specification
MODEL | T-120A | T-120B | T-120C | T-120D | ||||||||
DC VOLTAGE | 5V | 12V | -5V | 5V | 12V | -12V | 5V | 15V | -15V | 5V | 12V | 24V |
RATED CURRENT | 2~11A | 0.5~5A | 0.2~1A | 2~11A | 0.5~ 4.5A | 0.2~1A | 2~10A | 0.5~ 3.5A | 0.1-1A | 2~12A | 0.2~ 0.5A | 0.2~ 2A |
RIPPLE&NOISE | 80m Vp-p | 150m Vp-p | 150m Vp-p | 80m Vp-p | 150m Vp-p | 150m Vp-p | 80m Vp-p | 150m Vp-p | 150m Vp-p | 80m Vp-p | 120m Vp-p | 180m Vp-p |
EFFICIENCY | 77% | 77% | 76% | 80% | ||||||||
| ADJUSTABLE RANGE FOR DC VOLTAGE | ±10% | ±5% | ±5% | ±10% | ±5% | ±5% | ±10% | ±5% | ±5% | ±10% | ±5% | ±5% |
LINE REGULATION | ±0.5% | ±1% | ±1% | ±0.5% | ±1% | ±1% | ±0.5% | ±1% | ±1% | ±0.5% | ±1% | ±1% |
LOAD REGULATION | ±1% | ±5% | ±5% | ±1% | ±5% | ±5% | ±1% | ±6% | ±6% | ±0.5% | ±5% | ±5% |
SETUP,RISE,HOLD UP TIME | 200ms,50ms,16ms/230VAC at full load | |||||||||||
VOLTAGE RANGE | 90-132VAC/180-264VAC by switch 254~370VDC | |||||||||||
FREQUENCY RANGE | 47-63HZ | |||||||||||
IMPACT CURRENT | Cold start current 30A/115VAC 60A/230VAC | |||||||||||
OVERLOAD PROTECTION | 105-150% cut offtheoutput, automatic recovery | |||||||||||
OVER VOLTAGE PROTECTION | CH1:115-135% shut down O/P voltage ,re-power on to recover. | |||||||||||
WORKING TEMP | -10~ +50°C | |||||||||||
WITHSTAND VOLTAGE | I/P-O/P:1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute | |||||||||||
ISOLATION RESISTANCE | I/P-O/P,I/P-FG,O/P-FG:500VDC/100M Ohms | |||||||||||

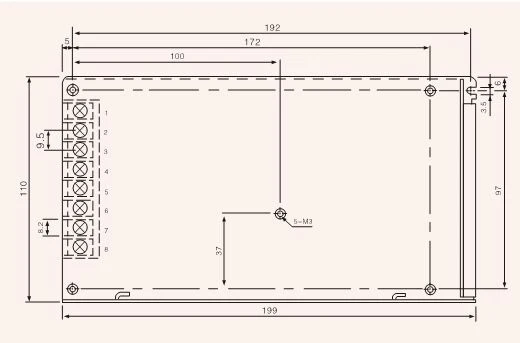

DIMENSION | 199*110*50mm | |||||||||||
WEIGHT | 0.9kg | |||||||||||
PACKING | 42*31.5*26cm/20pcs/18kg | |||||||||||
