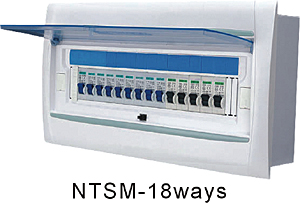

NTSM-18Ways Flush type distribution box

Quantity:
Inquire Add to Basket

  • NTSM-18Ways

  • CE

  • Winston/OEM

  • Made in China

  • Export standard carton box

  • PCS

  • 100

  • 3-15days

  • 1

  • T/T

NTSM-18Ways Flush type distribution box
Specification:
Rated voltage:690V/50Hz
Material:Cover:PC
              Body: ABS
Color:White
Tested and approved to EN60947-1
CE Certified
Din rail connection according to EN50022
Supplied with removable earth/neutral bar

 Plastic Cover Dimension:






       Model        L        W        H
       NTSM-4ways        150        225        20
       NTSM-6ways        195        225        20
       NTSM-8ways        230        225        20
       NTSM-12ways        300        225        20
       NTSM-18ways        425        225        20
       NTSM-24ways        300        345        20











 Plastic Base Dimension:






       Model        L        W        H
       NTSM-4ways        112        200        66
       NTSM-6ways        150        200        66
       NTSM-8ways        184        200        66
       NTSM-12ways        256        200        66
       NTSM-18ways        365        220        76
       NTSM-24ways        257        310        76
