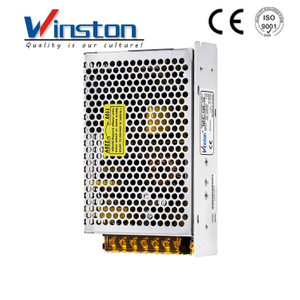

NES-75
Winston
8504401990
NES-75
Made in China
Export standard carton box
PCS
10
3-7days
| Model | NES-75-5 | NES-75-12 | NES-75-15 | NES-75-24 | |||
|
output | DC voltage | 5V | 12V | 15V | 24V | ||
| Voltage tolerance | ±2% | ±1% | ±1% | ±1% | |||
| Rated current | 14A | 6.2A | 5A | 3.2A | |||
| Current range | 0~10A | 0~6.2A | 0~5A | 0~3.2A | |||
| Rated power | 75W | 75.6W | 75W | 76.8W | |||
| Ripple&noise | 80mvp-p | 100mvp-p | 100mvp-p | 120mvp-p | |||
| DCvoltage ADJ.range | -9%~+10% | ±10% | ±10% | ±10% | |||
|
input | Voltage range | 85~264VAC,120~370VDC | |||||
| frequency | 47~63HZ | ||||||
| AC current | 1.5A/115VAC,0.75A/230VAC | ||||||
| efficiency | 79% | 82% | 82% | 84% | |||
| Inrush current | Cold start current 20A/115VAC,40A/230VAC | ||||||
| Leakage current | < 3.5mA/240VAC | ||||||
|
protection | Over load | Rated output power110%~150% start over load protection | |||||
| protection type:hiccup mode,auto-recovery after fault condition is removed | |||||||
| over voltage | 6.8~8.2V | 15.6~17.8V | 18.6~20.8V | 30.6~33.2V | |||
| protection type:hiccup mode,auto-recovery after fault condition is removed | |||||||
| environment | Working temp,humidity | -20℃~+60℃,20%~90%RH | |||||
| Storagetemp,humidity | -40℃~+85℃,10%~95%RH non-condensing | ||||||
| Withstand vibration | 10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes | ||||||
| safety | Withstand voltage | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||||
| Isolated resistance | I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC | ||||||
| Fitstandard | Safety standard | Fit UL1012 | |||||
| EMC standard | 符合EN55022,CLASSA | ||||||
| others | Dimension | 159*98*38mm (L*W*H) | |||||
| Weight/packing | 0.52kg/30pcs/16kg/0.034m³/1.2CUFT | ||||||
| note | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. | ||||||
