WJG6
Winston

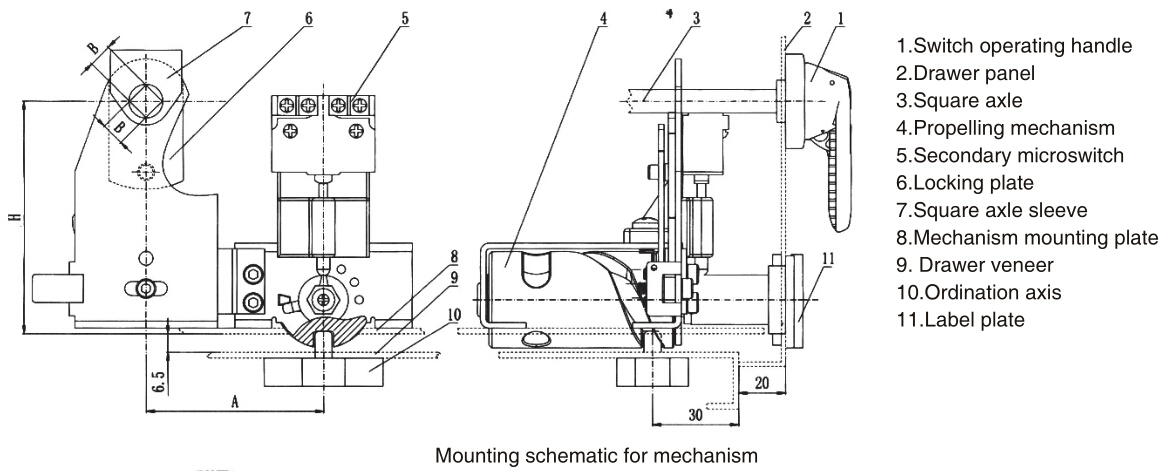

The mechanism model shall be chosen subject to the drawer height and matched mechanism square axle for the switch.

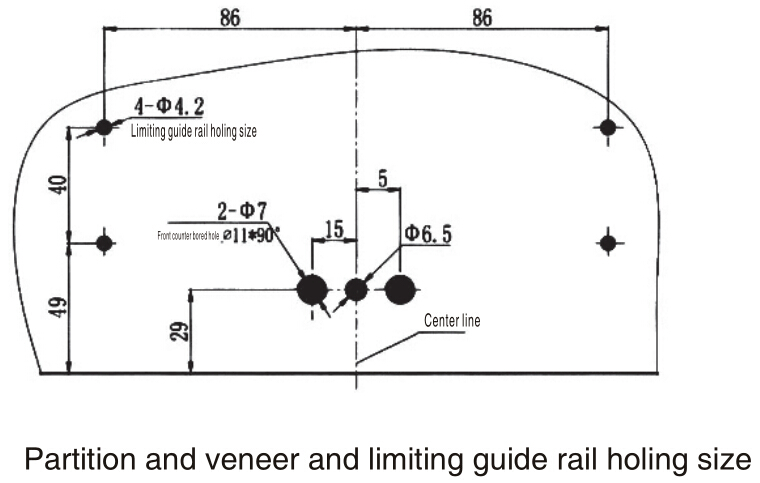

The limiting guide rail shall be chosen subject to the insertion-withdrawal force of the drawer.
List table for mechanism model selection
Mechanism model | H | A | B |
WJG5 WJG6 | 69 | 62 | 8 |
10 | |||
82 | 8 | ||
10 | |||
119 | 8 | ||
10 |
The mechanism model shall be chosen subject to the drawer height and matched mechanism square axle for the switch.
The limiting guide rail shall be chosen subject to the insertion-withdrawal force of the drawer.
List table for mechanism model selection
Mechanism model | H | A | B |
WJG5 WJG6 | 69 | 62 | 8 |
10 | |||
82 | 8 | ||
10 | |||
119 | 8 | ||
10 |
