Manufacturer Single output AC DC switching power supply 60W DR-60

Availability:
Quantity:
  • DR-60

  • WINSTON

Technical parameter

DIN RAIL type , easy to installation

100% full load burn-in test
High efficiency, long life and high reliability

Over voltage /Overload protection
2years warranty

CE & Rohs certifications


Model DR-60-5 DR-60-12 DR-60-15 DR-60-24

DC voltage 5V 12V 15V 24V
output Current range 0~6.5A 0~4.5A 0~4A 0~2.5A

Rated power 32.5W 54W 60W 60W

Ripple&noise 80mvp-p 120mvp-p 12mvp-p 150mvp-p

DCvoltage ADJ.range ±10% ±10% ±10% ±10%

Voltage range 85~264VAC,120~370VDC 47-63Hz

Efficiency 76% 82% 83% 84%

Inrush current Cold start current 18A/115VAC, 36A/230VAC

Over load 105%~150% cut off the output,automatic recovery

Over voltage 115%-135% shut down O/P voltage, re-power on to recover
environment Working temperature -10°C~+50°C
safety Withstand voltage I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute
Isolated resistance I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
others Dimension 78*93*56mm (L*W*H)
Weight/packing 0.3kg/45pcs/14kg/43*32*21.5cm
note 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.

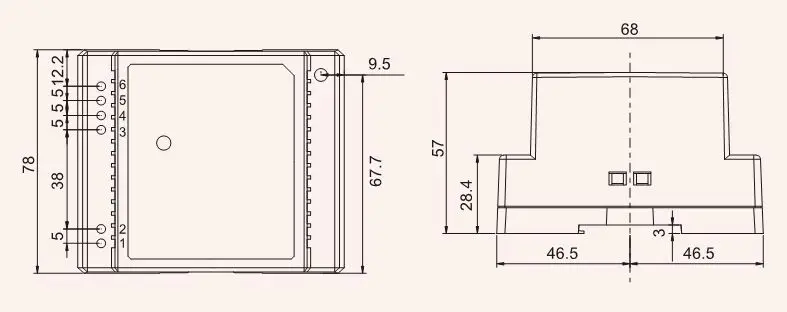

dimension
