Magnetic Household 40A Electrical 3 Phase WCT Small DC Contactor

Availability:
Quantity:
  • wct-40a-3p dc

  • Winston

Factory Electricity Home 40A 3 Pole Modual AC Contactor

Factory Electricity Home 40A 2P Household DC ContactorFactory Electricity Home 40A 2P Household DC Contactor

Technical parameter
3P Rating (In) AC7a Control voltage (VAC)(50Hz) Contact

40A 220...240 3NO 6



Power circuit
Voltage Rating(Ue) 1P, 2P
250VAC
3P, 4P
400VAC
Endurance(O-C)
Electrical
100000 cycles
Maximum number of switching operation a day
100
Additional characteristics
Insulation voltage(Ui)
500VAC
Pollution degree
2
Rated impulse withstand voltage(Uimp)
2.5kV(4 kV for 12/24/48V AC)
Degree of protection

(IEC 60529)
Device only
IP20
Device in modular enclosure
IP40
Tropicalization (IEC 60068-1)
Treatment 2(relative humidity 95% at 55℃)
Dimension

Factory Electricity Home 40A 2P Household DC Contactor


WCT contactors-50Hz
Type
Raring(In)
Control voltage
(VAC)(50Hz)
Consumption
Max.
power
AC7a
Holding
Inrush
3P
40A
220...240
4.6VA
34VA
1.6W

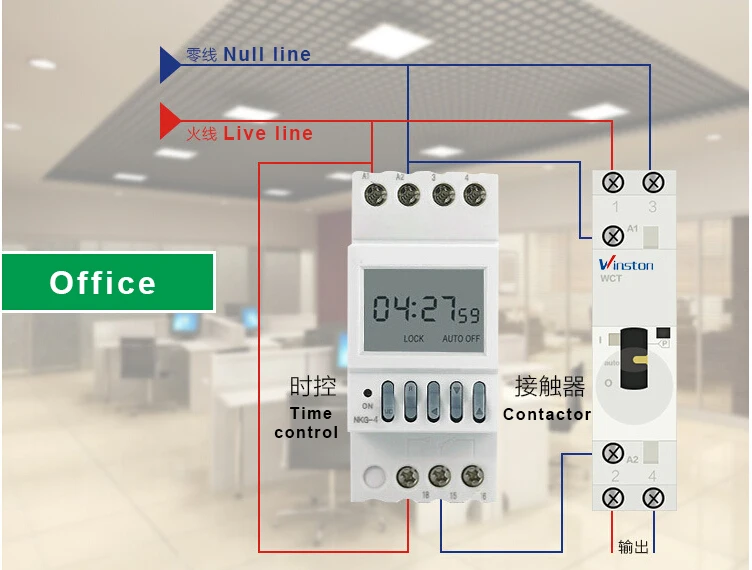

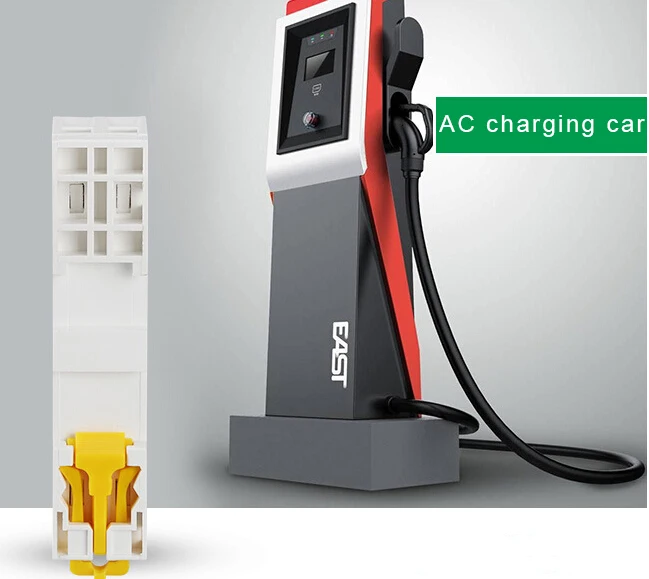

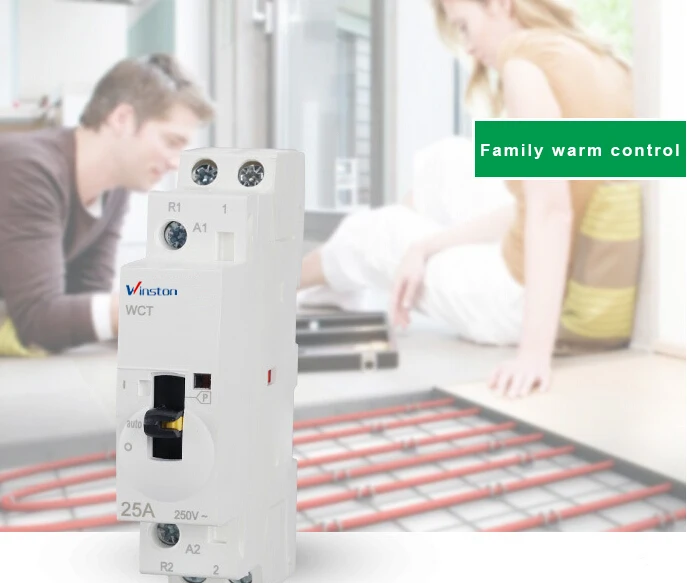

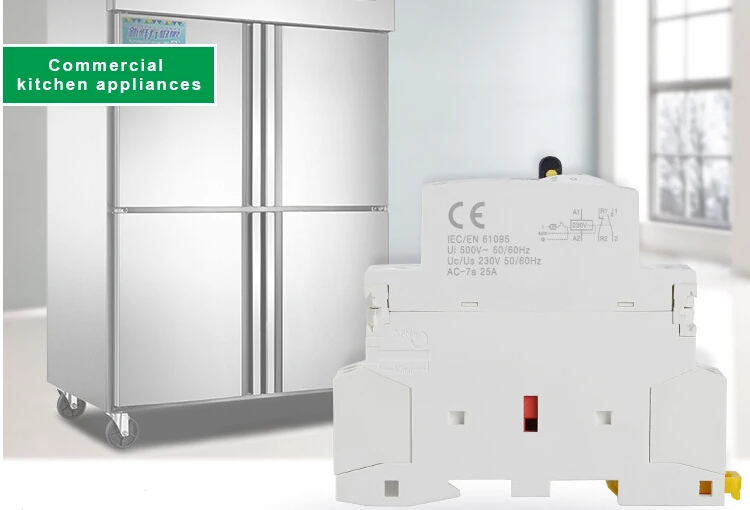

Application

Factory Electricity Home 40A 2P Household DC ContactorFactory Electricity Home 40A 2P Household DC ContactorFactory Electricity Home 40A 2P Household DC ContactorFactory Electricity Home 40A 2P Household DC Contactor




Factory Electricity Home 40A 2P Household DC ContactorFactory Electricity Home 40A 2P Household DC Contactor

Factory Electricity Home 40A 2P Household DC Contactor

Factory Electricity Home 40A 2P Household DC Contactor
