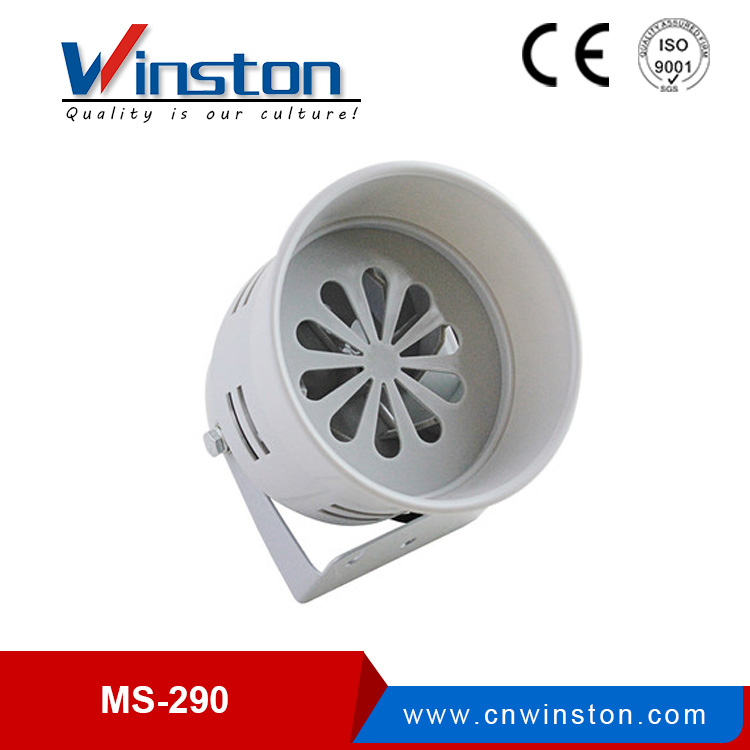

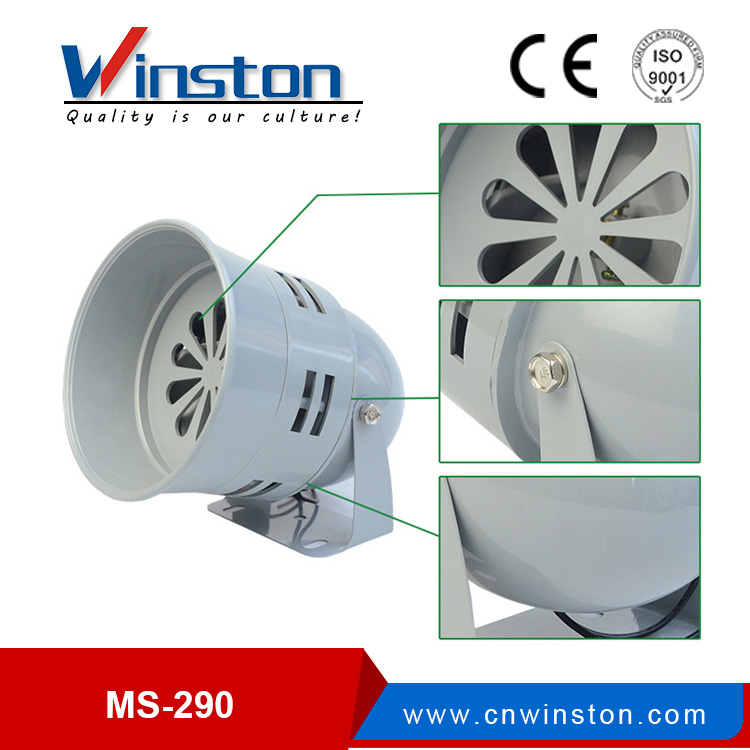

MS-290B Metal Motor Siren

MS-290B Metal Motor Siren
Voltage:DC12V,24V,AC110V 220V
112DB
50/60HZ

Quantity:
  • MS-290B
  • Winston
  • 8531809000

MS-290M Metal Motor Alarm Siren

Description

Apply in small elevator, conveyor, the place such as small vessels mechanical warehouse to send signals.
Color:Grey
Material:Metal
Insulation resistance:100MΩ at 500Vdc
Withstand voltage:500VAC,50/60HZ in 1 minute
Power:40W
IP grade:IP44


Technical parameters


       Model        Voltage        Current(A)        HZ        dB(A)1m        Packing size        PCS/CTN        G.W.
       MS-290M        DC12V        5.8        60        120dB        54*34*41cm        24PCS        16KG
       DC24V        2.1        60        120dB        16KG
       AC110V        1.6        60        120dB        22KG
       AC220V        0.8        60        120dB        22KG


Overall dimensions

                            QQ图片20140325152339

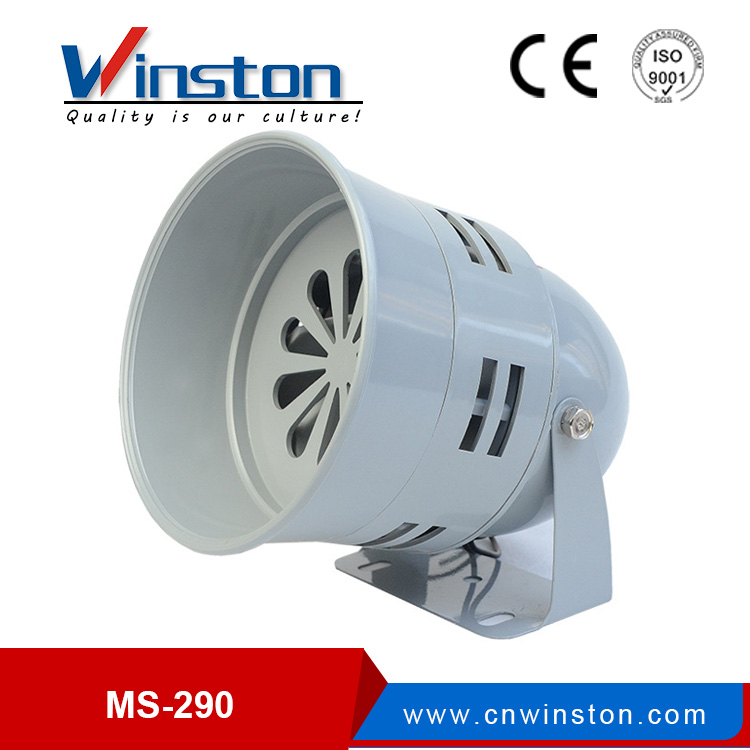

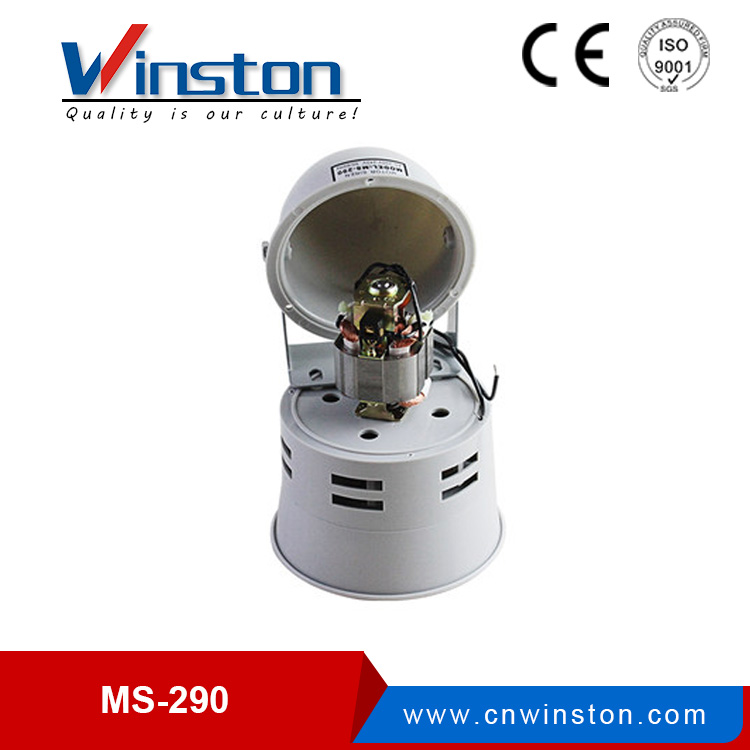

MS-290-frontMS-290-MINI-MOTOR-SIRENMS-290-motor-sirenMS-290-WARNING-LIGHT
