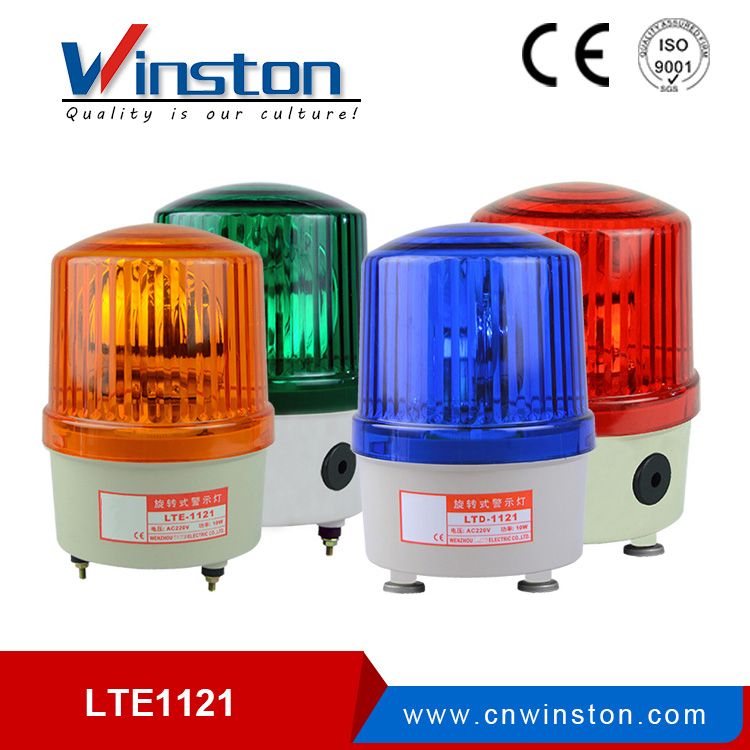

LTD-1121 LED Flashing warning light (Φ120) DC12V 24V AC110V 220V

1121 Diameter 120mm small warning light
Voltage:DC12V DC24V AC110V AC220V
Color:Red,Yellow,Green,Blue
Screw fixing or magnetic

Quantity:
  • LTE-1121,LTE-1121J,LTD-1121,LTD-1121J
  • Winston
  • 8531809000

LTD-1121  LED Flashing  warning light (Φ120) DC12V 24V AC110V 220V

Description
Using high quality resin. With high strength, can adapt to bad environment. Science of parabolic reflecting the light spread
very far. Use rubber gasket, conforms to the IP55 protection grade, rainproof, dustproof.


Technical parameters

Legend
Model LTE1121 LTE1121J LTD1121 LTD1121J
Lighting
Bulb Revolving

Bulb Revolving

Bulb Revolving

Bulb Revolving
Power 10W 10W 10W 10W
Mounting Screw Fixing Screw Fixing With Buzzer Magetic Fixing Magetic Fixing With Buzzer
Sound - 90dB - 90dB
Play Sound - 1  - 1
Voltage DC12V
 DC24V
 AC110V
 AC220V
DC12V
 DC24V
 AC110V
 AC220V
DC12V
 DC24V
 AC110V
 AC220V
DC12V
 DC24V
 AC110V
 AC220V
Color



       Model        Voltage        Power        Color        dB(A)1m        Packing size        PCS/CTN        G.W.
       LTE1121        DC12V        10W        Red        -        69*29*43cm        20PCS        8KG
       LTE1121J        DC24V        Yellow        90dB        12KG
       LTD1121        AC110V        Green        -        8KG
       LTD1121J        AC220V        Blue        90dB        12KG


Overall dimensions

QQ图片20140325170901
Type



Application
