LP 25-24 Single output LED display Din-Rail Switching Power Supply 24W 24V 1A

LP 25-24 Single output LED display Din-Rail Switching Power Supply 20W 5V 4A

Quantity:
  • LP 25-24
  • Winston

LP 25-24  Single output LED display Din-Rail Switching Power Supply 20W 5V 4A



Features:

Protection characteristic : short circuit/overload/overvoltage

High efficiency, high reliability and long service life.

Natural air cooling

100% full load burning test

LED power indication



LP-25



Model/Specification

LP-25-5

LP-25-12

LP-25-24

Output

DC Output Voltage

5V

12V

24V

Output Voltage tolerance

±2%

±1%

±1%

Rated Output Current

4A

2.1A

1A

Rated Output Current0

0-4A

0-2.1A

0-1A

DC Output Power

20W

25.2W

24W

Triple and Noise

80mVp-p

120mVp-p

240mVp-p

Adjustable Range for DC Voltage

4.75-5.5v

11.4-13.2V

20.5-26.5v

Input

AC Input Voltage Range

90-264VAC    100-360VDC 47~63Hz;

AC input current

0.45A/115VAC 0.25/230VAC

Efficiency

78%

83%

85%

AC Inrush Current

Cold-Start Current: 10A/115V,20A/230V

Leakage Current

<2mA/240VAC

Protection

Overload Protection

110%-150%

Protection mode: cut off output and restart

Over Voltage Protection

5.75-6.75V

11-14V

22-27V

Protection mode: cut off output and reset automatically

Environment

Work Temperature Humidity

-10℃~+50℃,20%~90%RH

Storage Temperature Humidity

-20℃~+85℃,10%~95%RH

Shock resistance

10~500Hz,2G 10min,/1cycle,duration:60min each shaft

Safety

Voltage withstand capacity

I/P-O/P:2KVAC,I/P-FG:1/5KVAC,O/P-FG:0/5KVAC

Insulation resistance

I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC

Others

Size

35*45*102(l*w*h)

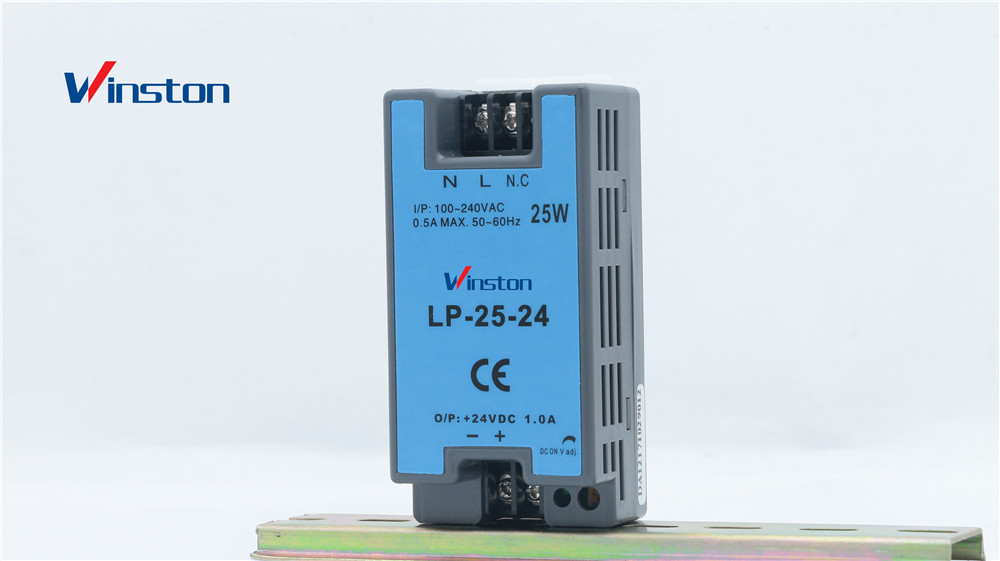

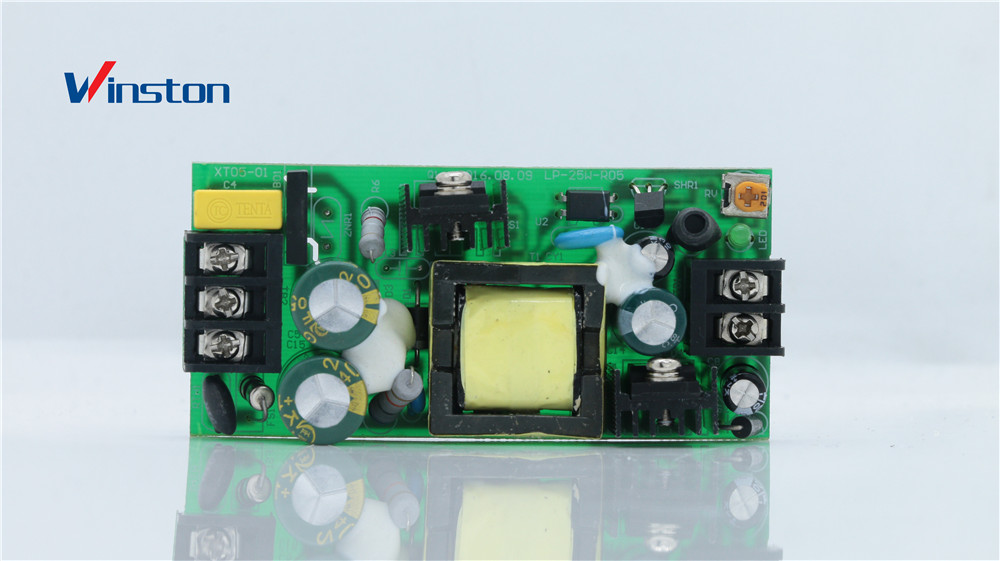

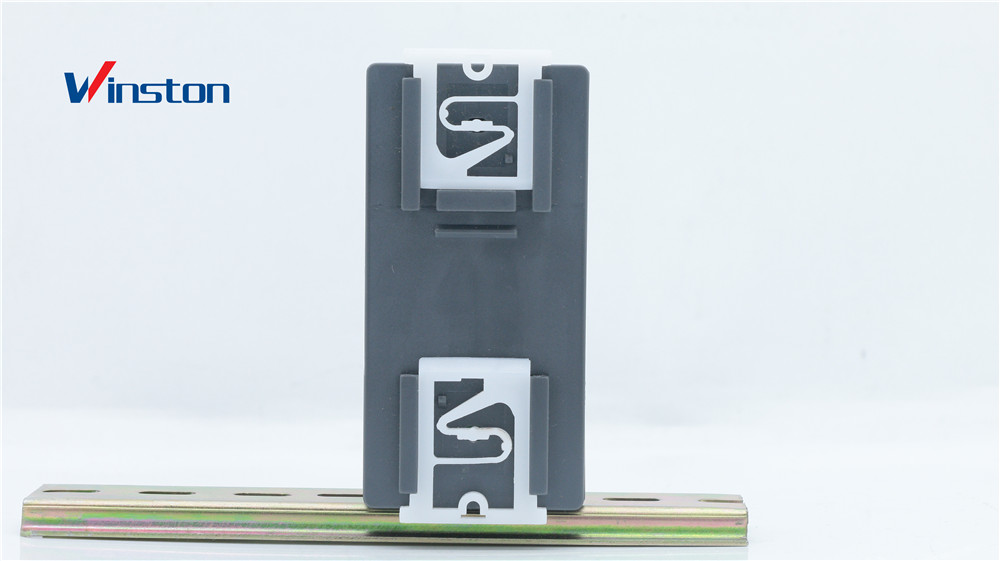

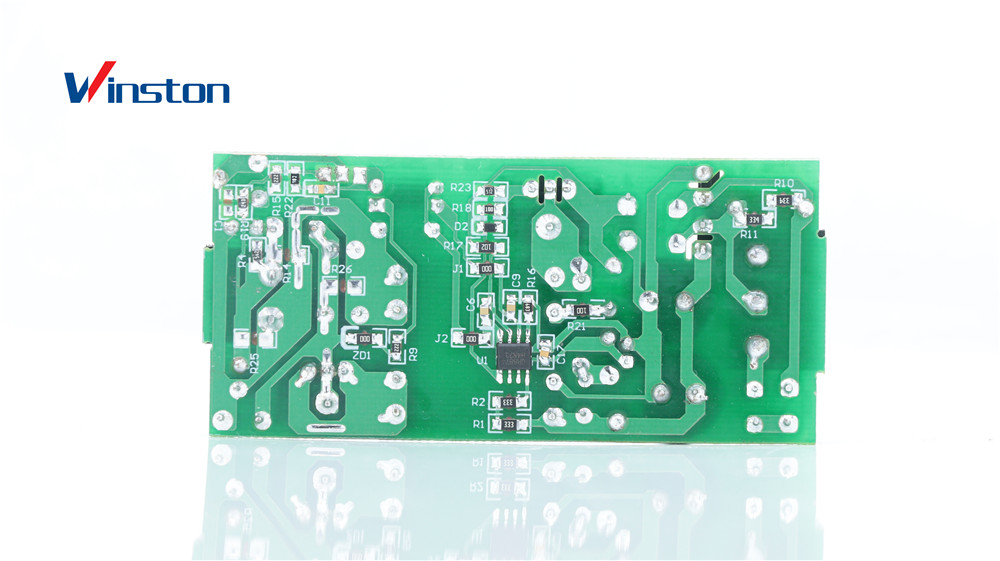

IMG_1138IMG_1139IMG_1143IMG_1144
