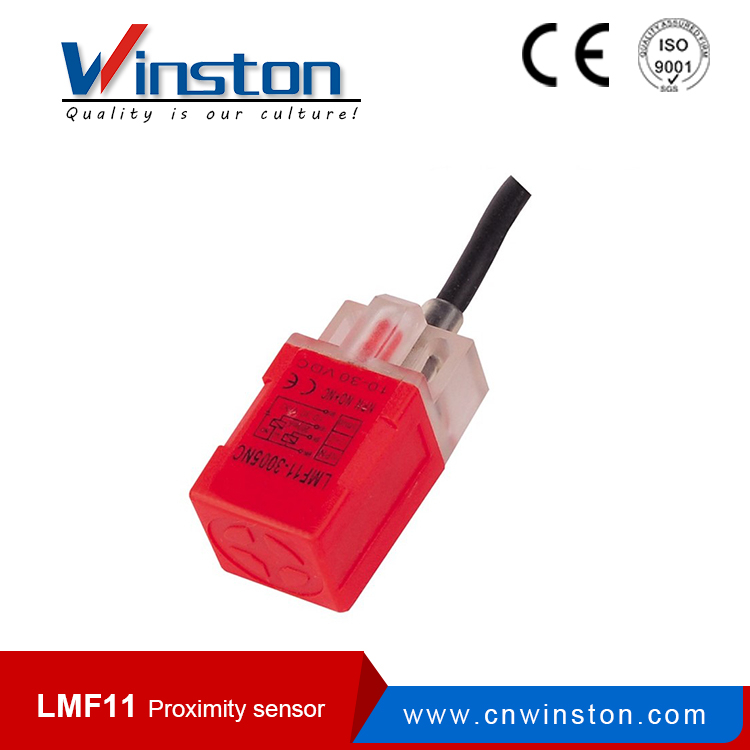

LMF11 Distance PNP Proximity Sensor Types Inductive

  • LMF11
  • Winston

LMF11 Distance PNP Proximity Sensor Types Inductive

Compact volume
high precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof,vibration proof,water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life


 Model explanation of proximity switch

 1. Switch category(LM: inductance type; CM: capactitance type;SM:Hall type; AM:safety explosion-proof type; XM: mimic linear type)
 2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type)
 3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20:90-250VAC; 210: 24-250VAC;220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)
 4. Detection distance( 01: 1mm; 05:5mm; 10:10mm)
 5. Output method (N: Three-line DC NPN output;P: Three-line DC PNP output;
 L: Two-line DC output; AC two-wire output;J: Relay output;NP: NPN+PNP output)
 6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)
 7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement; H: High temp resistance; R: Ring type)

 Technical Parameters:





               DETECTION DISTANCE       5MM
       Flush        DC 10-30V        NPN        NO        LMF11-3005NA
       NC        LMF11-3005NB
       NO+NC        LMF11-3005NC
       PNP        NO        LMF11-3005PA
       NC        LMF11-3005PB
       NO+NC        LMF11-3005PC
       two wire system        NO        LMF11-3005LA
       NC        LMF11-3005LB
       AC 90-250V        SCR Control-lable silicon        NO
       Relay output
               DETECTION DISTANCE
       Non-Flush        DC 10-30V        NPN        NO
       PNP        NO
       two wire system        NO
       AC 90-250V        SCR Control-lable silicon        NO
       Relay output
       Controloutput        DC        200mA
       SCR/ Relay
       Output voltagc dropDC/AC        NPN/PNP<3V,Two wire<3.9V,AC<10V
       Consumption current        DC<15mA,AC<10mA
       Standard detected object        20*20*1(A3 iron)
       Repeated precision        0.05
       DC/AC        500HZ
       Working environment temperature        -25℃~+70℃
       Insulation resistance        50MΩ
       Shell material        ABS Resin
       Protection grade        IP67
       Altemative model at home and abroad        PL-05N,PL-05P
