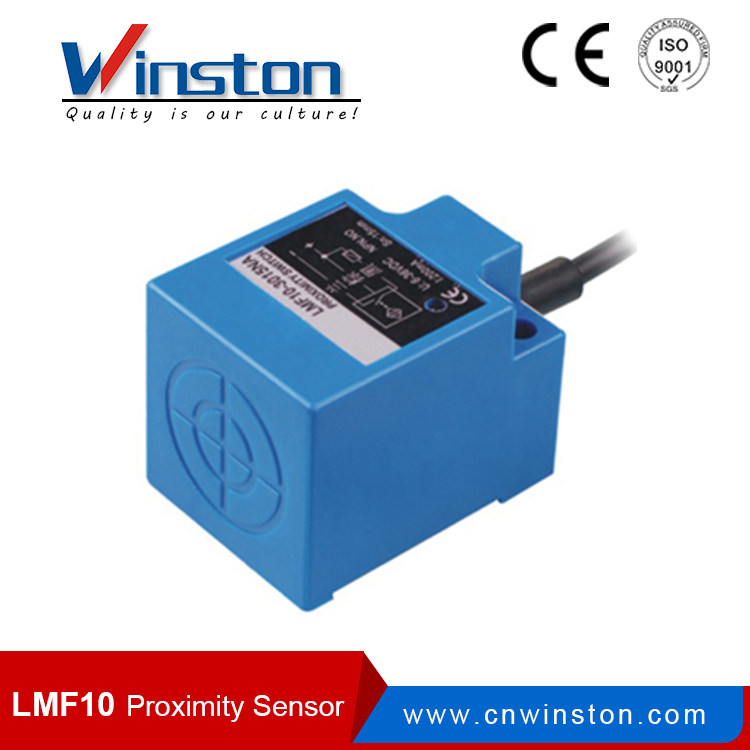

LMF10 flush PNP proximity sensor switch

  • LMF10
  • Winston

LMF10 flush PNP proximity sensor switch

Compact volume
high precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof,vibration proof,water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life


 Model explanation of proximity switch

 1. Switch category(LM: inductance type; CM: capactitance type;SM:Hall type; AM:safety explosion-proof type; XM: mimic linear type)
 2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type)
 3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20:90-250VAC; 210: 24-250VAC;220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)
 4. Detection distance( 01: 1mm; 05:5mm; 10:10mm)
 5. Output method (N: Three-line DC NPN output;P: Three-line DC PNP output;
 L: Two-line DC output; AC two-wire output;J: Relay output;NP: NPN+PNP output)
 6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)
 7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement; H: High temp resistance; R: Ring type)

 Technical Parameters:





               DETECTION DISTANCE       15MM
       Flush        DC 10-30V        NPN        NO        LMF10-3015NA
       NC        LMF10-3015NB
       NO+NC        LMF10-3015NC
       PNP        NO        LMF10-3015PA
       NC        LMF10-3015PB
       NO+NC        LMF10-3015PC
       two wire system        NO        LMF10-3015LA
       NC        LMF10-3015LB
       AC 90-250V        SCR Control-lable silicon        NO        LMF10-2015A
       NC        LMF10-2015B
       NO+NC        LMF10-2015C
       Relay output
               DETECTION DISTANCE                 20MM
       Non-Flush        DC 10-30V        NPN        NO        LMF10-3020NA
       NC        LMF10-3020NB
       NO+NC        LMF10-3020NC
       PNP        NO        LMF10-3020PA
       NC        LMF10-3020PB
       NO+NC        LMF10-3020PC
       two wire system        NO        LMF10-3020LA
       NC        LMF10-3020LB
       AC 90-250V        SCR Control-lable silicon        NO        LMF10-2020A
       NC        LMF10-2020B
       NO+NC        LMF10-2020C
       Relay output
       Controloutput        DC        200mA
       SCR/ Relay        500mA
       Output voltagc dropDC/AC        NPN/PNP<3V,Two wire<3.9V,AC<10V
       Consumption current        DC<15mA,AC<10mA
       Standard detected object        45*45*1(A3 iron)
       Repeated precision        0.05
       DC/AC        100HZ/15HZ
       Working environment temperature        -25℃~+70℃
       Insulation resistance        50MΩ
       Shell material        ABS Resin
       Protection grade        IP67
       Altemative model at home and abroad        TL-N20M
