JD11-5H
Winston
JDM11-5H type electronic counter is widely used in the production flow counting, counting and automatic packing machine, stamping speed, length, counting the number of all need to count the occasion, and can be used for the two instrument display instrument.

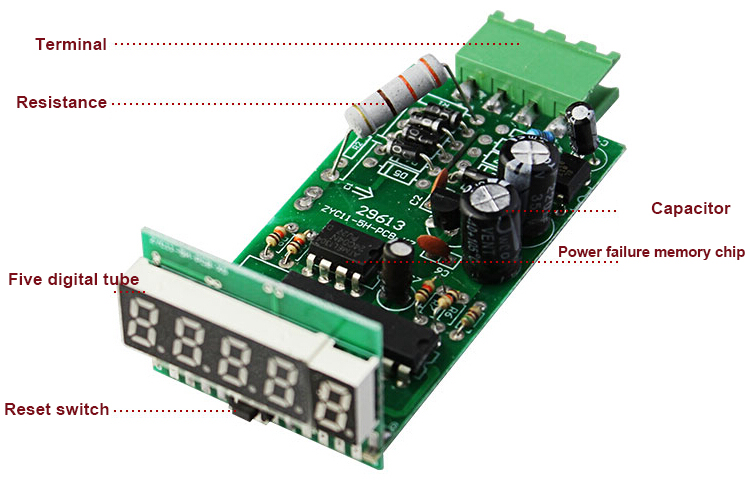

JDM11-5H series using low power integrated circuits and bright LED display, no mechanical wear, long service life, display clear and beautiful, there is a power failure data storage function, when power interruption, included in the data stored in a persistent memory, can be included in the data holding at least ten years, when power is restored, can don't lose to count.
Count digit | Five bit, six bit |
Count range | 0-99999,0-999999 |
Size | 45*35*96mm |
Rated working voltage | DC6.3V,12V,24V,AC24V,48V,110V,220V |
Counting speed | 10 times/sec and 1000 times/sec |
Operating voltage range | 85%-110% |
Power supply | ≤2W |
After losing electricity | Existing data for 10 years |
Count input mode | 1: voltage input type 2: no voltage input type |
JDM11-5H counter has the characteristics of visual, simple operation, easy to use, strong anti-interference ability and so on. Can be widely used in chemical industry, food, textile, printing, electronics, machinery and other industries.
JDM11-5H type electronic counter is widely used in the production flow counting, counting and automatic packing machine, stamping speed, length, counting the number of all need to count the occasion, and can be used for the two instrument display instrument.
JDM11-5H series using low power integrated circuits and bright LED display, no mechanical wear, long service life, display clear and beautiful, there is a power failure data storage function, when power interruption, included in the data stored in a persistent memory, can be included in the data holding at least ten years, when power is restored, can don't lose to count.
Count digit | Five bit, six bit |
Count range | 0-99999,0-999999 |
Size | 45*35*96mm |
Rated working voltage | DC6.3V,12V,24V,AC24V,48V,110V,220V |
Counting speed | 10 times/sec and 1000 times/sec |
Operating voltage range | 85%-110% |
Power supply | ≤2W |
After losing electricity | Existing data for 10 years |
Count input mode | 1: voltage input type 2: no voltage input type |
JDM11-5H counter has the characteristics of visual, simple operation, easy to use, strong anti-interference ability and so on. Can be widely used in chemical industry, food, textile, printing, electronics, machinery and other industries.
Model | JDM11-5H 4Pin |
Counter range | 0-99999 |
Voltage | AC220V,AC110V,AC36V ,DC24V,DC12V,Custom |
Voltage fluctuation range | 85%~110% |
Counter speed | 20times/s |
Indication error | <1*0.00001 |
Use environment | -20°C~50°C Relative humidity≤85% |
Power | ≤2W |
Lost power | Data can be save for 10years |
Counter input type | NPN proximity switch or photoelectric switch |
Model | JDM11-5H 4Pin |
Counter range | 0-99999 |
Voltage | AC220V,AC110V,AC36V ,DC24V,DC12V,Custom |
Voltage fluctuation range | 85%~110% |
Counter speed | 20times/s |
Indication error | <1*0.00001 |
Use environment | -20°C~50°C Relative humidity≤85% |
Power | ≤2W |
Lost power | Data can be save for 10years |
Counter input type | NPN proximity switch or photoelectric switch |
