LC013/LCF013
Winston
Hot Seller Winston airflow meter air-flow sensor airflow monitor LC013/LCF013
The LC 013/LCF 013 air-flow monitor provides a simple but reliable alternative to indicate positive or negative air flow of fans.When properly installed and connected in series with an optical (i.e. LED) or audible signaling device, a bi-directional switch will activate an electrical contact if the air flow of the fan falls below 8.2 ft/s, thus either turning the signaling device on or off.
Technical Parameter
| LC013 | Without Cover |
| LCF013 | With Cover |
| Contact type | Reed / magnet contact |
| NC (normally closed) | Contact open with air flow |
| NO (normally open) | Contact closed with air flow |
| Switching threshold of air flow speed | >8.2 ft/s (2.5 m/s) |
| Hysteresis: | 3.3 ft/s (1 m/s) - fixed |
| Contact resistance incl. wire | 370MΩ |
| Service life | > 100,000 cycles |
| Max. switching capacity | 10W (resistive load) |
| Max. switching voltage | NC: AC/DC 240 V / NO: DC 60 V |
| Max. switching current | NC: DC 500mA / NO: DC 170mA |
| Connection | 2 x single strand AWG 26, length 500 mm, tip of stranded wire stripped/tinned (5 mm) |

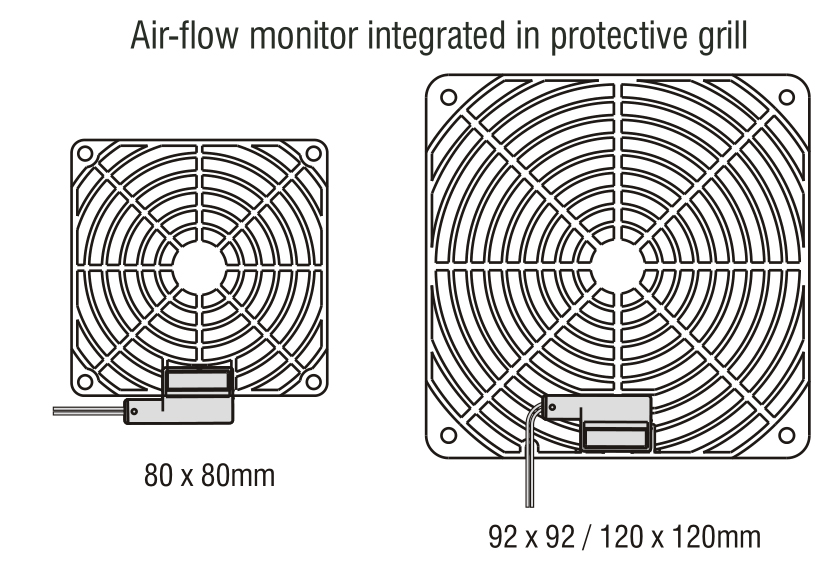

| Mounting | Attachment clamp and/or clip or integrated in protective grill (see below) |
| Housing | Plastic, UL 94HB, black |
| Dimensions | 1.3 x 0.7 x 0.3" (34 x 17.5 x 7.5 mm) |
| Mounting position | Air-flow monitor opening perpendicular to air flow |
| Operating/storage temperature | -4 to 122°F (-20 to 50°C) / -4 to 176°F (-20 to 80°C |
| Protection type | IP 20 |
Product Description

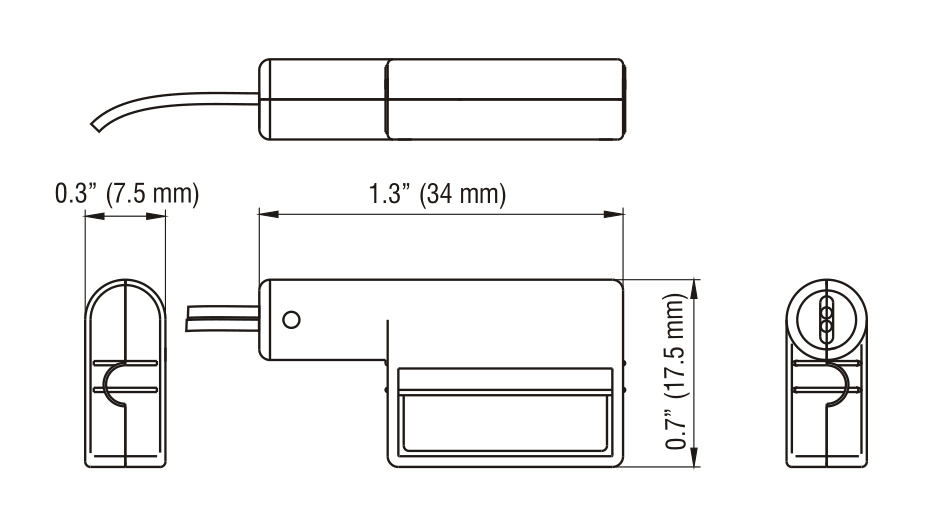

Dimension
Application
The LC 013 air-flow monitor can be used in combination with optical or audible signaling devices (such as LED’s or alarms), or remote monitoring devices. It should be connected:

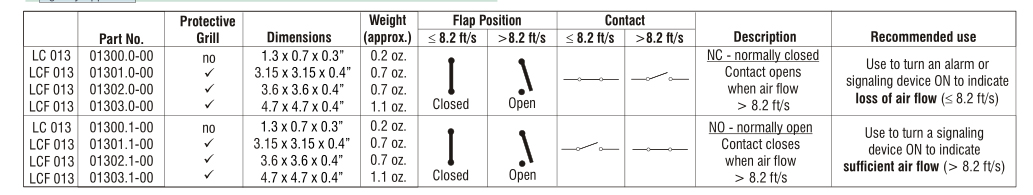

A) in series directly with the signaling device itself, if the power of the connected device does not exceed the electrical ratings of the LC 013 as listed, or to the pilot switch side of a relay (i.e. our SM 010), if the signaling device to be switched exceeds the electrical ratings of the LC 013 and needs to be switched via relay. In this case, aproperly sized relay should be specified by the customer for the specific application/device.Please refer to the table shown below to ensure the correct contact type (NC-normallyclosed or NO-normally open) suitable for the application.
