Hot Sale Magnetic Hall Proximity Sensor Switch SM12

Quantity:
  • SM12
  • Winston
Technic data

SM12 Detection Distance 10mm
Detectable object  Permanent magnet
Flush 5-24VDC                                 NPN NO SM12-31010NA
NC SM12-31010NB
PNP NO SM12-31010PA
NC SM12-31010PB
Output  low level voltage 200mV
high level current 0.1uA
Main current 8mA
ON-OFF frequency 320KHz
Working point magnectic density 22mT
Shell material Metal
Ambient temperature —25 ~ + 70
Protection structure IEC standand IP67

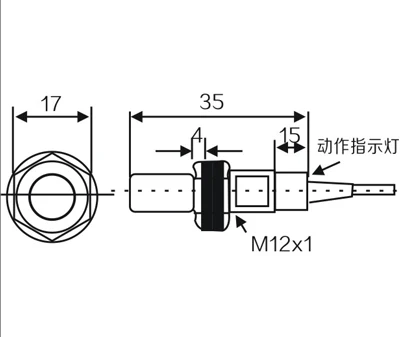

Dimension



Application

Packaging & Shipping
