Hot Sale Dual Output D-50W Switching Power Supply Unit PSU With CE Rohs

Availability:
Quantity:
  • D-50W

  • Winston

Technic data



1.Description

1) High Efficiency, High Reliability, Low Cost
2) AC Input Range:90-132VAC/180-264VAC by switch 254-370 VDC
3) 100% Full Load Burn-In Test
4) Protections: Short Circuit / Over Load/Over Voltage
5) LED Indicator For Power On
6) Cooling By Free Air Convection
7) Approvals: CE RoHS
8) 2 Year Warranty.



2.Specification





MODEL


D-50A

D-50B

D-50C

D-50F

DC VOLTAGE

5V

12V

5V

24V

12V

-12V

12V

24V

RATED CURRENT

0~6A

0~2A

0~6A

0~1A

1~2A

0.3~2A

1~2A

0.2~1A

RIPPLE&NOISE

50mVp-p

80mVp-p

50mVp-p

100mVp-p

100mVp-p

100mVp-p

100mVp-p

120mVp-p

EFFICIENCY

73%

73%

73%

73%

ADJUSTABLE RANGE FOR DC VOLTAGE

±10%

±5%

±10%

±5%

±10%

±10%

±10%

±10%

LINE REGULATION

±0.5%

±1%

±0.5%

±1%

±1%

±1%

±1%

±1%

LOAD REGULATION

±0.5%

±4%

±0.5%

±1%

±0.5%

±5%

±0.5%

±8%

SETUP,RISE,HOLD UP TIME

200ms,100ms,30ms at full load

VOLTAGE RANGE

90-132VAC/180-264VAC by switch 254-370VDC

FREQUENCY RANGE

47-63HZ

IMPACT CURRENT

Cold start current 18A/115VAC 36A/230VAC

OVERLOAD PROTECTION

105-150% cut off the output, automatic recovery

OVER VOLTAGE PROTECTION

CH1:115-135% shut down O/P voltage ,re-power on to recover

WORKING TEMP

 -10~ +50°C

WITHSTAND
VOLTAGE

I/P-O/P:1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute

ISOLATION
RESISTANCE

I/P-O/P,I/P-FG,O/P-FG:500VDC/100M Ohms

DIMENSION

159*98*38mm

WEIGHT

0.55kg

PACKING
34*32*24cm/30pcs/15kg

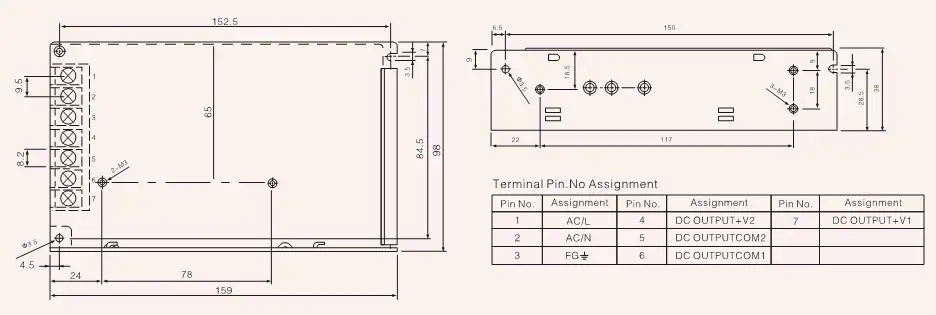

Dimension

Product Description



Packaging & Shipping
