Anti-impact sensor incremental optical shaft rotary encoder e6c2
• 1000 P/r, DC8-24V, push pull.
• The use of high quality components guarantees a long life cycle and high operational reliability.
• Feature: sturdy and durable, easy to install, optional various output mode, etc.
Adopt ASIC photoelectric device, strong and reliable
Select high quality wire, no pulse
Aluminum alloy shell, strong and high temperature resistant
Long life, anti - interference, wide temperature range
• Manufacturer. better quality control, better delivery control and better cost control.
INCREMENTAL ROTARY ENCODERS,OUTSIDE DIAMΦ50
Product advantage
Technical parameter
| Electrical parameters | Mechanical parameters | ||
| Resolution | 10-3600P/R | Start the moment | 2 x10^-3N - m (+ 25 ° C) |
| Power supply voltage | DC5V-24V,DC5V | Allowable shaft load | 9.8N axial and 9.8N radial |
| Output voltage VH | ≥3.5.≥Vcc-2.5 V | The moment of inertia | 4x10^-7 Kg㎡ |
| Output voltage VL | ≤0.5V ≤1.0 V | The largest number of revolutions | 5000r/min |
| Current consumption | ≤100mA | Working temperature | -20℃~+70℃ |
| The output phase | A, B, Z, A, B, Z | Storage temperature | -20℃~+80℃ |
| Response frequency | 0-100kHz | Protection grade | IP65 |
| Rise/fall time | 24V ＜1us 5V driver ≤0.1 us | Shock resistant | 50M /S^2 (10~200Hz X,Y,Z 3 directions 2 hours each) |
| Impact resistant | 980m/s^2 | ||
Dimension

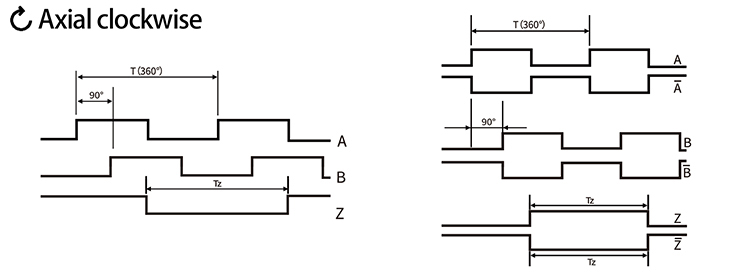

Output waveform

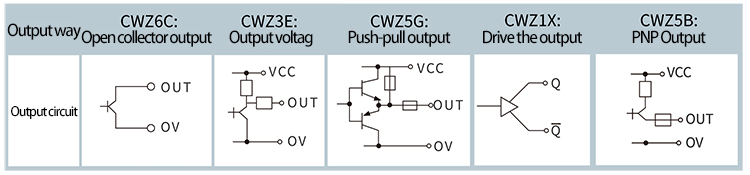

Wiring diagram
| Signal | VCC | OV | SIG A | SIGA | SIG B | SIGB | SIGZ | SIGZ | N.C |
| Cable color | Brown | Blue | Black | Black/Red | White | White/Red | Orange | Orange/Red | Bronze |
