Factory Direct Sales WST-09 3A To 16A Thermostat With CE

Availability:
Quantity:
Inquire Add to Basket

  • WST-08

  • Winston

ModelWST-09
Measure range0~40 Celsius
Current3A    10A   16A
Temperature control Accuracy +/-1 Celsius
Power supply85-250VAC 50/60Hz
Power consumption<1W
Sensor typeNTC  B=3380 10K@25Celsius
Sensor QTY2 PCS
Multi. periods programe5+2/6+1/7
TypeLarge LCD display + back lighting
Mount height1.5meter
Control modeheating
Body materialAntiflaming PC

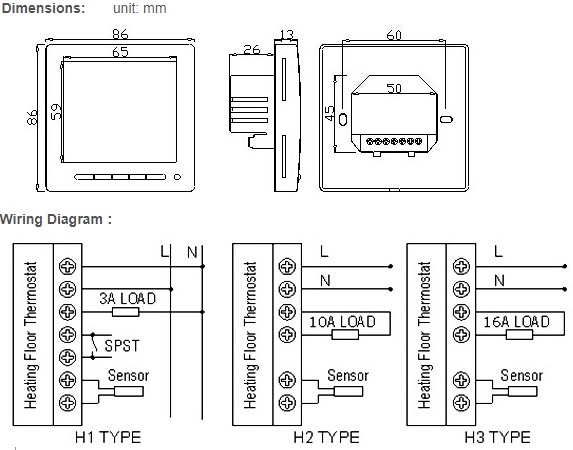

Dimensions86*86*12mm
Weight170g/PCS
