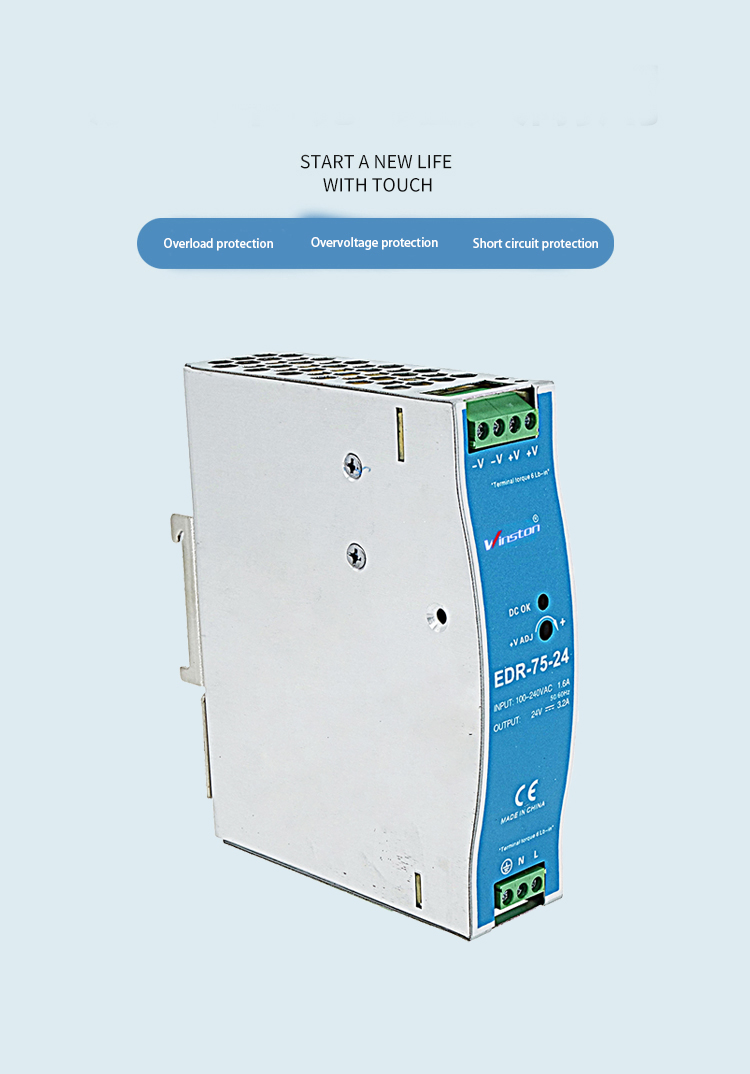

EDR-75
Winston
Features
• Universal AC input / Full range
• Protections:Short circuit/ Overload/ Over voltage / Over temperature
• Cooling bu free air convection
• Can be (industrial control equipment) listed
• EN61000-6-2 (EN50082-2) industrial immunity level
• 100% full load burn-in test
• Low cost
• 2 years warranty
Specifications
Technical parameter
| AC input voltage range | 90-264VAC;127-370VDC |
| AC inrush current (max.) | Cold start,35A at 230VAC |
| DC adjustment range | 12V:12-14V:24-28V,48V:48-55V |
| Overload protection Range | 105%~130% |
| Overload protection Type | Constant current limiting, auto-recovery |
| Over voltage protection Range | 12V:14-17V,24V:29-33V ,46V:56-65V |
| Over temperature protection Type | Shut down o/p voltage,re-power on to recover |
| Over temperature protection | Shut down o/p voltage,re-power on to recover |
| Withstand voltage | I/P-O/P:3kVAC,I/P-FG:2kVAC,O/P-FG:0.5kVAC |
| Working temperature | -20~+60℃(refer to output dorating curve) |
| Safety standards | UL508, TUV EN60950-1 approvred |
| EMC standards | EN55022 classA, EN61000-3-2(125W for EDR-150) ΕN61000-4-2,3,4,5,6,8,11,EN61000-6-2(EN0082-2) |
| Connection(screw DIN terminal)I/P | 3 poles ,O/P:4 poles |
| Temperature, humidity | -20 ℃ ~ +70 C(NDR-75, NDR-120) -20 ℃~+70 ℃(NDR-240, NDR-480) |
| EDR-75, Dimension | (W x H x D) mm 32 x 125.2 x 102mm |
