DRP-240 Din rail switching power supply

Availability:

Quantity:



Inquire Add to Basket

Model:
DRP-240
Brand:
Winston

Features

·AC input voltage range selected by switch

·Small volume，low weight，high efficiency

·protections：short circuit/over load/over voltage/over temp

·cooling by free air convectio

·can be installed on DIN rail: TS-35/7.5or TS-35/15

·LED indicator for power on

·100% full load burn-in test

·2 Year warranty

Application

产品应用2

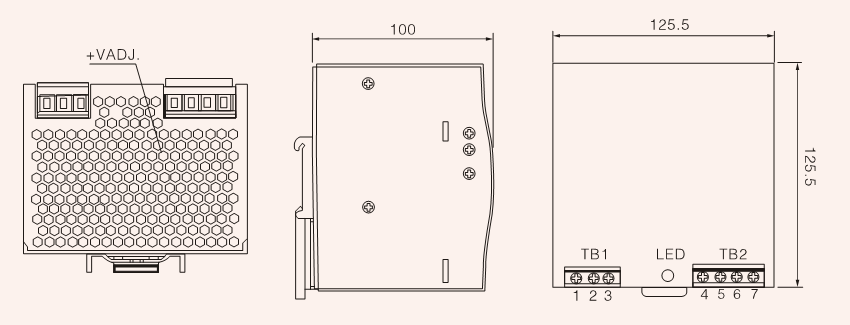

Dimension

14V HDR 30W Ultra Slim Step Shape DIN Rail Power supply

Yueqing SMPS DR-15 Din Rail 12V 24V 15W Power Supply

Winston DR-100 Din Rail 100W Switching Power Supply

DRT-480 48V 480W din rail led driver power supply

DRT-240-24 24V single output din rail switch model power supply

WINSTON Single output din rail dc led driver DRP-480-48 480W 48V

PFC function din rial power supply unit 240W 24V DRP-240-24

DRH-120-24 120W 24V single output industrial din rail power supply

MDR-100-24 switch mode power supply 24V ac to dc converter

Direct factory price 60W 24V MDR-60-24 Din rail LED driver

110v/220v ac to dc MDR-40-24 40W 24V 1.7A Din Rail Power Supply

AC to DC 20W 12V MDR-20-12 din rail led lighting power supply

Winston MINI type MDR-10-5V 10W din rail switch power supply

OEM factory 220v ac 12v dc power supply DR-120-12

Factory 75W DR-75-24 Single output LED power supply with CE approved

Manufacturer Single output AC DC switching power supply 60W DR-60

WINSTON DR-45 45W single output din rail power supply

High efficiency DR-30-5 30W 5V SIngle output din rail LED driver

MDR-10 10W Din rail power supply

SDR-480 480W Din rail power supply

Professional manufacturer, quality is our culture!
READ MORE>>

Products

Quick Links

Contact Us

Tel: 0086-577-27852809
Fax: 0086-577-61738060
Mob: 0086-13757875820
Whatsapp:0086-13757875820
E-mail: wstele@wstele.net
Skype:wstele
QQ: 2853768221

Model		DRP-240-24	DRP-240-48
	DC voltage	24V	48V
output	Current range	0~10A	0~5A
	Rated power	240W	240W
	Ripple&noise	80mvp-p	150mvp-p
	DCvoltage ADJ.range	±10%	±10%
	Voltage range	86-264VAC 120-370VDC ,47-63Hz
	Efficiency	84%	85%
	Inrush current	Cold start current 0.65A/400VAC 0.6A/500VAC
	Over load	105%~150% cut off the output,automatic recovery
	Over voltage	120%-140% shut down O/P voltage, re-power on to recover
environment	Working temperature	-10°C~+50°C
safety	Withstand voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute
safety	Isolated resistance	I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
others	Dimension	125.5125.5100mm (LWH)
others	Weight/packing	1.3kg/12pcs/15kg/41.527.525cm
note	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
	2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
	3. Tolerance : includes set up tolerance, line regulation and load regulation.

Model		DRP-240-24	DRP-240-48
	DC voltage	24V	48V
output	Current range	0~10A	0~5A
	Rated power	240W	240W
	Ripple&noise	80mvp-p	150mvp-p
	DCvoltage ADJ.range	±10%	±10%
	Voltage range	86-264VAC 120-370VDC ,47-63Hz
	Efficiency	84%	85%
	Inrush current	Cold start current 0.65A/400VAC 0.6A/500VAC
	Over load	105%~150% cut off the output,automatic recovery
	Over voltage	120%-140% shut down O/P voltage, re-power on to recover
environment	Working temperature	-10°C~+50°C
safety	Withstand voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute
safety	Isolated resistance	I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
others	Dimension	125.5125.5100mm (LWH)
others	Weight/packing	1.3kg/12pcs/15kg/41.527.525cm
note	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
	2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
	3. Tolerance : includes set up tolerance, line regulation and load regulation.
