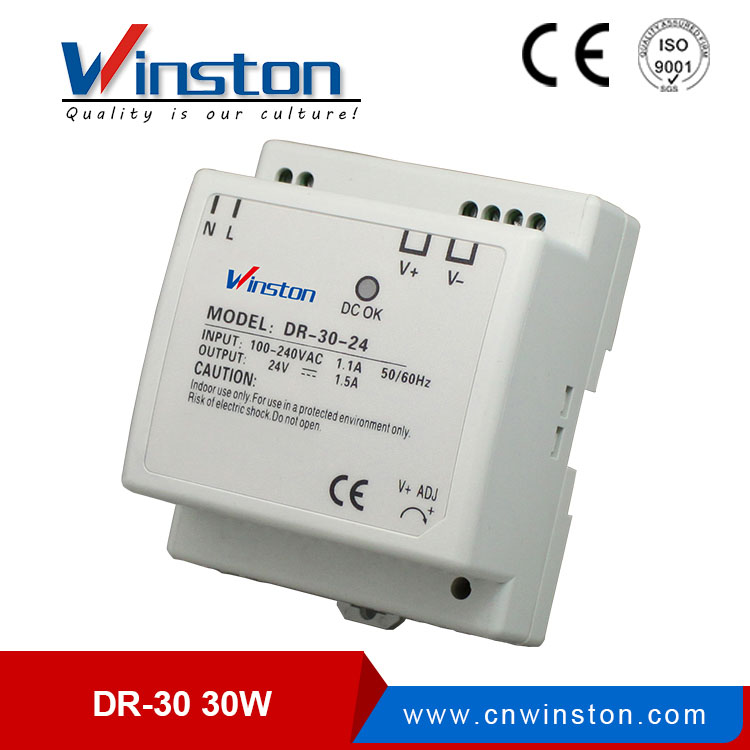

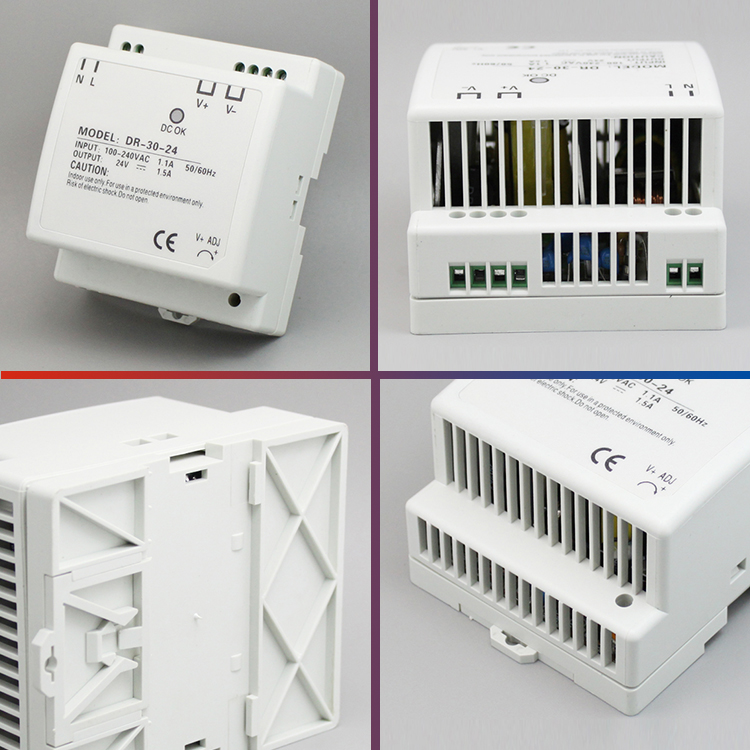

DR-30
Winston
·Universal AC input/ full range
·Small volume，low weight，high efficiency
·Protections：short circuit/over load/over voltage
·cooling by free air convectio
·can be installed on DIN rail: TS-35/7.5or TS-35/15
·LED indicator for power on
·100% full load burn-in test
·3 Year warranty
MODEL | DR-30-5 | DR-30-12 | DR-30-15 | DR-30-24 | |
OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V |
CURRENT RANGE | 0 ~ 3A | 0 ~ 2A | 0 ~2A | 0 ~ 1.5A | |
RIPPLE & NOISE (max.) | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | |
VOLTAGE ADJ. RANGE | 4.75 ~ 5.5V | 10.8 ~ 13.2V | 13.5 ~ 16.5V | 21.6 ~ 26.4V | |
VOLTAGE TOLERANCE | ±2.0% | ±1.0% | ±1.0% | ±1.0% | |
LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
LOAD REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
SETUP, RISE TIME | 100ms, 30ms/230VAC 100ms, 30ms/115VAC at full load | ||||
HOLD TIME(Typ.) | 100ms/230VAC 30ms/115VAC at full load | ||||
INPUT | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC | |||
FREQUENCY RANGE | 47 ~ 63Hz | ||||
EFFICIENCY (Typ.) | 74% | 81% | 82% | 83% | |
AC CURRENT | 0.88A/115VAC 0.48A/230VAC | ||||
INRUSH CURRENT(max.) | COLD START 15A/115VAC 30A/230VAC | ||||
PROTECTION | OVERLOAD | 105 ~ 160% rated output power | |||
Protection type : Constant current limiting,recovers automatically after fault condition is removed | |||||
OVER VOLTAGE | 5.75 ~ 6.75V | 13.8 ~ 16.2V | 17.25 ~ 20.25V | 27.6 ~ 32.4V | |
Protection type : Shut down o/p voltage,re-power on to recover | |||||
ENVIRONMENT | WORKING TEMP. | -20 ~ +60ºC (Refer to output load derating curve) | |||
WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
STORAGE TEMP., HUMIDITY | -20 ~ +85ºC , 10 ~ 95% RH | ||||
TEMP. COEFFICIENT | ±0.03%/ºC (0 ~ 50ºC) | ||||
VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||||
SAFETY & EMC | SAFETY STANDARDS | Design refer to UL60950-1,TUV EN60950-1,EN50178 | |||
WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||||
ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | ||||
OTHERS | MTBF | 441.5K hrs min. MIL-HDBK-217F (25ºC) | |||

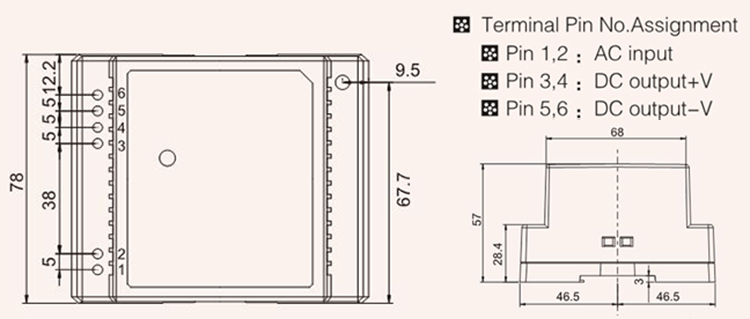

DIMENSION | 78*93*56mm (L*W*H) | ||||
PACKING | 0.27Kg; 48pcs/14Kg/1.02CUFT | ||||
