SM 010
Winston
Features
16 Amp DC switching capacity
Variety of applications
Compact design
DIN rail mountable

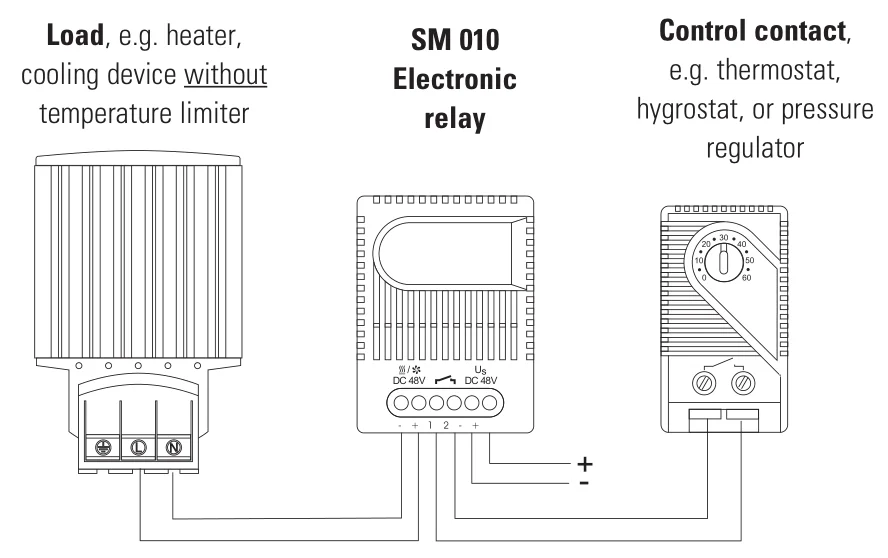

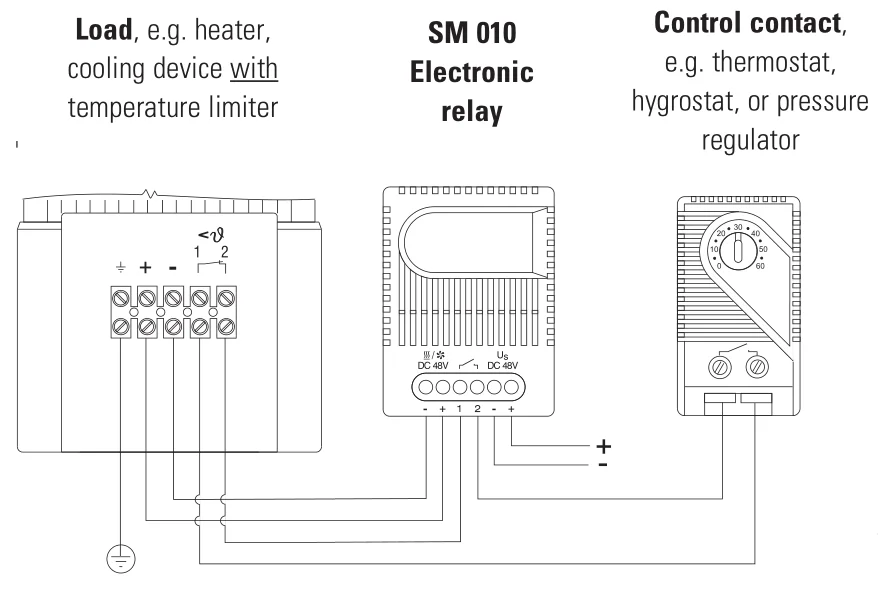

The SM 010 Electronic Relay is used for switching high powered DC operated equipment, such
as heaters, up to 16 amps. A separate conventional switch contact is used as controller (e.g.
thermostat, hygrostat). The electronic relay is available in DC 24 V and DC 48 V versions.
Technical data
| Model | SM 010 |

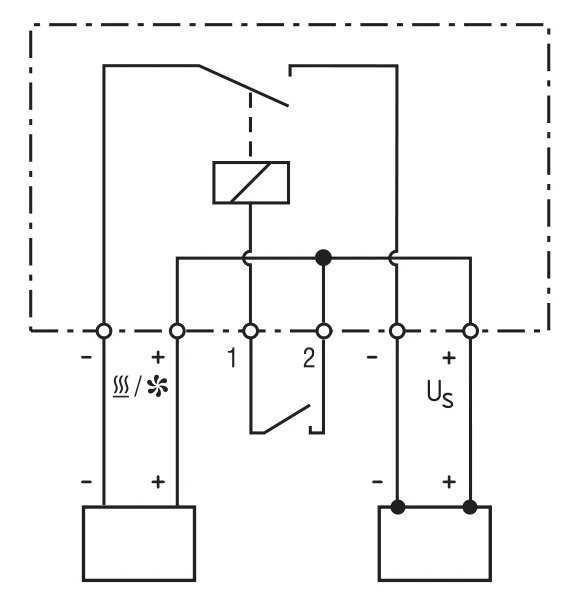

| Contact type | NO - normally open (Relay/MOSFET) |
| Service life | > 100,000 cycles |
| Max. inrush current | DC 16 A |
| Connection | 6-pole terminal, clamping torque 0.5 Nm max.: |
| solid wire - AWG 14 max. (2.5 mm²) | |
| stranded wire (w/ wire end ferrule) - AWG 16 max. (1.5 mm²) | |
| Housing | plastic, UL 94V-0, light grey |
| Mounting | clip for 35 mm DIN rail, EN 60715 |
| Mounting position | vertical |
| Operating / Storage temperature | -49 to +158 °F (-45 to +70 °C) |

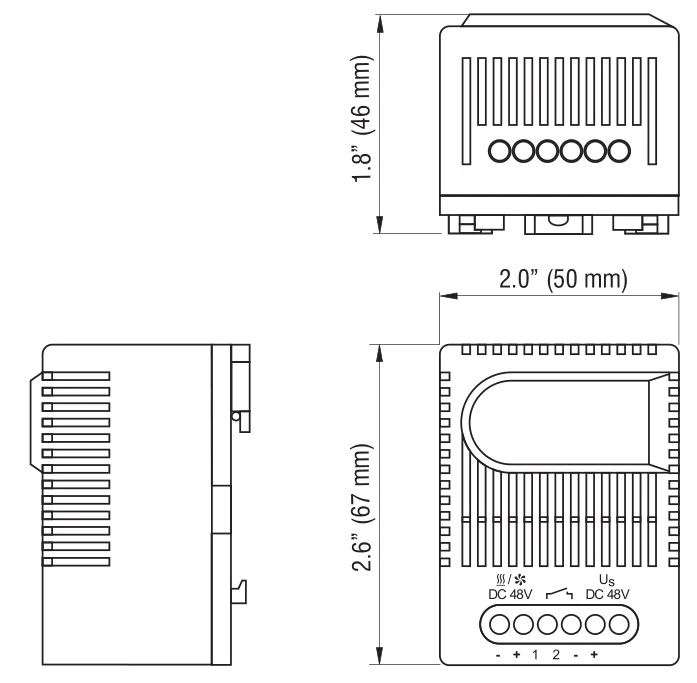

| Dimensions | 2.6 x 2.0 x 1.8” (67 x 50 x 46 mm) |
| Weight | approx. 3.0 oz. (85 g) |
| Protection type | IP20 |
| Approvals | VDE, UL File No. E342261 |
| Part No. | Operating voltage | Max. Switching capacity | Signal current | |
| 01000.0-01 | DC48V (DC38-56V) | 16A@ DC56 V | 10mA@DC38V / 18mA @DC56 V | |
| 01001.0-01 | DC24V (DC20-28V) | 16A@ DC28 V | 13mA@DC20V / 22mA@DC | |
