S-25-5 S-25-12 S-25-15 S-25-24
WINSTON
Universal AC input/Mini-size (AC/DC),
Small volume,light weight,high efficiency
Protections: Short Circuit/Over Load/Over Voltage/ automatic recovery
Indicator for power on/normal(LED)
100% full loadburn-in test
2 Year warranty.
Model | S-25-5 | S-25-12 | S-25-15 | S-25-24 | |
Output | DC Voltage | 5V | 12V | 15V | 24V |
Current Range | 0~5A | 0~2.1A | 0~1.4A | 0~1.1A | |
Wave & Noise | 50mVp-p | 50mVp-p | 75mVp-p | 100mVp-p | |
Voltage Adj.Range | ±10% | ±10% | ±10% | ±10% | |
Line wave stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
Load stability | ±1.0% | ±0.5% | ±0.5% | ±0.5% | |
Setup,Rise Hold time | 200ms, 100ms/230VAC at full load | ||||
Input | Voltage Range | 90~132VAC/ 180~264VAC 47~63HZ | |||
Efficiency | 65% | 68% | 70% | 72% | |
Impact Current | Cold Start Current 15A/115VAC 30A/230VAC | ||||
Leakage Current | <0.75mA / 240VAC | ||||
Protection | Over Load | 105 ~ 150% Cut off the output, Automatic Recovery | |||
Environment | Working Temperature | -10 ~ +50°c (Refer to "Derating Curve" ) | |||
Working Humidity | 20~90% RH Non-condensing | ||||
Temp. coefficient | ±0.03%/°C (0~50°C) | ||||
Safety | Withstand Voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/ 25°c / 70% RH | ||||

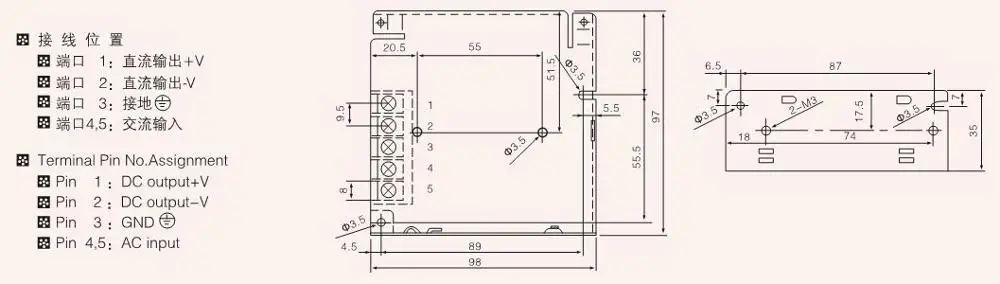

Others | Dimension | 98*97*35mm (L*W*H) | |||
Packing | 43*32.5*24cm/60pcs/18Kg |
