CE LPV-60W waterproof led driver swimming pool led light power supply

Size: 181*71*47mm
Protections: overcurrent

Quantity:
  • LPV-60
  • WINSTON


ModelLPV-60-12LPV-60-24
outputDC voltage12V24V
Voltage tolerance±1%±1%
Rated current5A2.5A
Current range0~5A0~2.5A
Rated power60W60W
Ripple&noise100mvp-p150mvp-p
inputVoltage range90~264VAC,126~373VDC
Frequency47~63HZ
AC current1.6A/115VAC, 0.8A/230VAC
Efficiency82%84%
Inrush currentCold start current 18A/115VAC, 36A/230VAC
Leakage current<1mA/240VAC
protectionOver loadRated output power 115%~135%start over load protection
Protection type:hiccup mode,auto-recovery after fault condition is removed
Over voltage15.6~17.8V30.6~33.2V
Protection type:hiccup mode,auto-recovery after fault condition is removed
Over temperatureShell temp≥85°C,start over temperature protection
Protection mode:cutoff output,auto-recovery after temperature become normal
environmentWorking temp,humidity-10°C~+60°C,20%~90%RH
Storage temp.humidity-20°C~+85°C,10%~95%RH non condensing
Withstand vibration10~500HZ,2G 10min/1cycle,period for 60minutes,each axes
safetyWithstand voltageI/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolated resistanceI/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
FitsSafety standardFit UL1012,IP67 protect level
tandardEMC standardFit EN55022,CLASSA

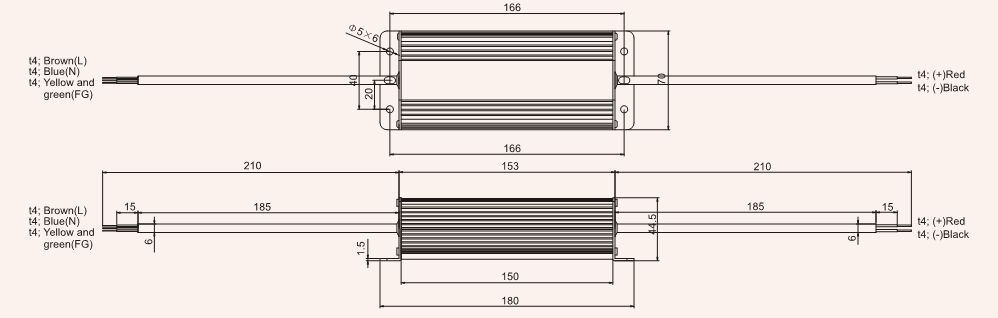

OthersDimension183*71*47mm (L*W*H)
Weight/packing18pcs/ctn 47*20*18.5cm
Note1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
