BK-250 250VA 380VAC / 220VAC Input Single Phase Control Transformer

Quantity:
  • BK-250
  • Winston




Model Power (VA) Input   voltage (V) Output
voltage (V)

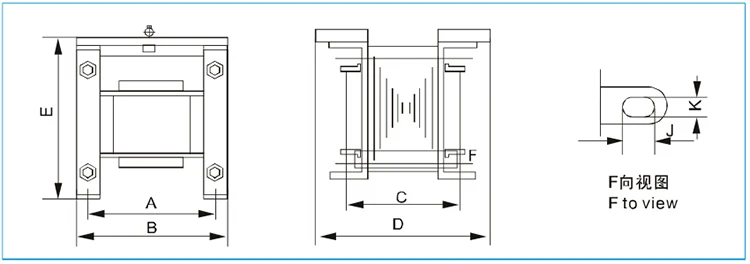

External Installs the size Installment hole
Bmax Dmax Emax A±0.4 C±1.5 K J
BK-25 25VA 380VAC / 220VAC      36V           /24V        /12V   /6.3V  76 80 77 65 50 5 7
BK-50 50VA 87 94 87 70 60 6 8
BK-100 100VA 108 95 101 85 65 6 8
BK-150 150VA 108 100 101 85 75 6 8
BK-200 200VA 108 107 101 85 80 6 8
BK-250 250VA 115 110 125 90 95 8 11
BK-300 300VA 115 115 125 90 100 8 11
BK-400 400VA 135 140 140 110 100 8 11
BK-500 500VA 135 145 140 110 105 8 11
BK-800 800VA 155 150 160 125 119 8 11
BK-1000 1000VA 155 160 160 125 130 8 11
BK-1500 1500VA 180 220 180 143 150 8 11
BK-2000 2000VA 180 240 180 143 175 8 11
BK-2500 2500VA 210 230 240 185 175 8 11
BK-3000 3000VA 210 245 240 185 190 8 11
BK-4000 4000VA 250 250 280 195 170 8 11
BK-5000 5000VA 250 265 280 195 195 8 11

BK-250 250VA 220V/380V Input Single Phase Industrial Control Transformer
