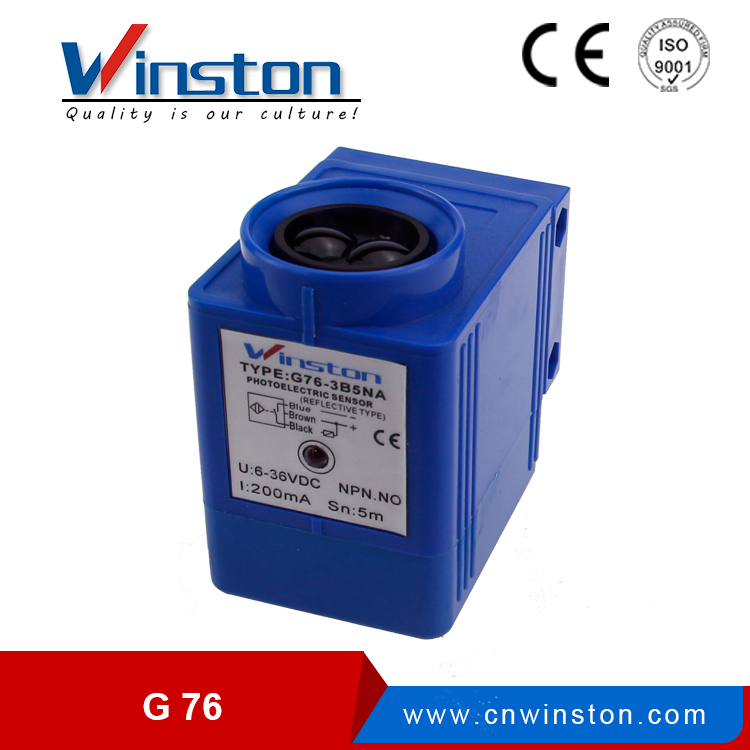

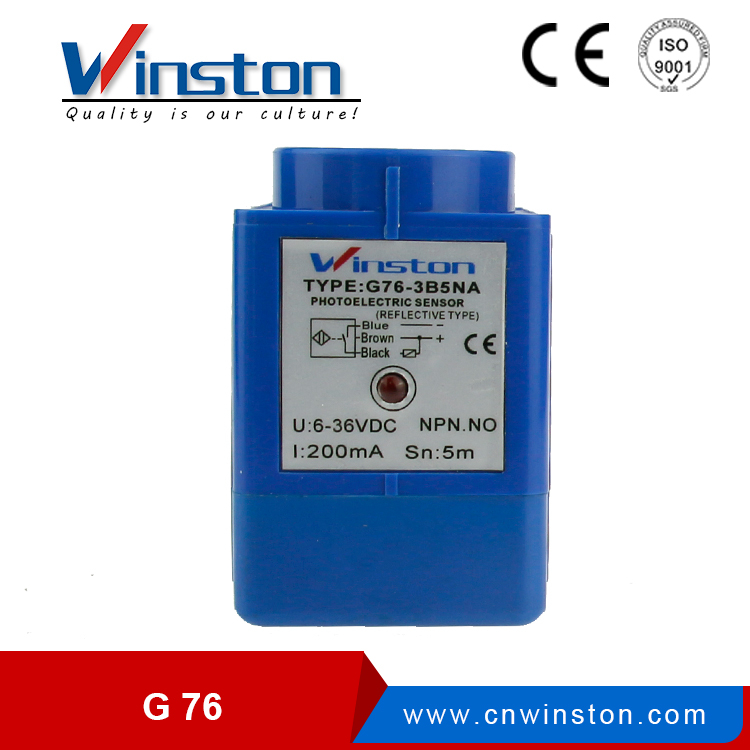

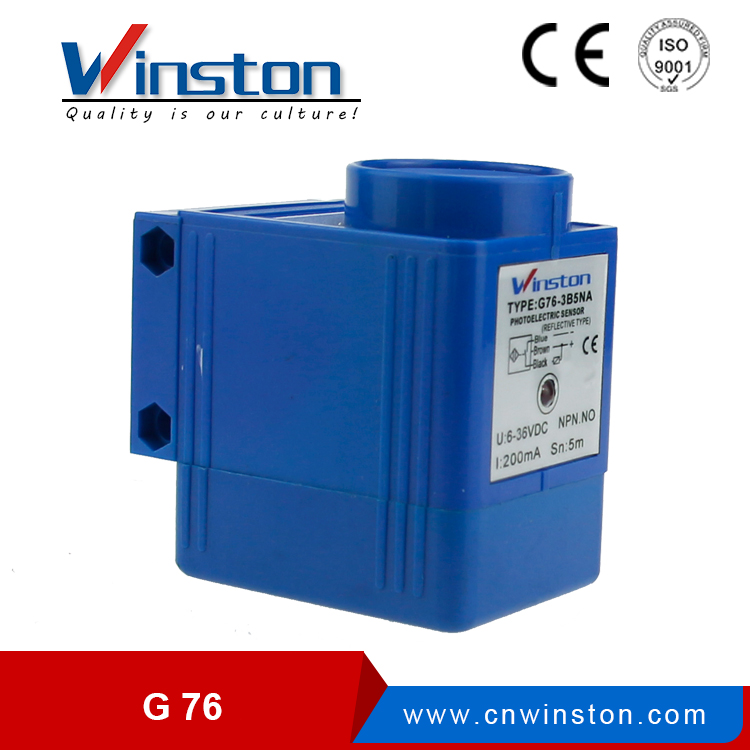

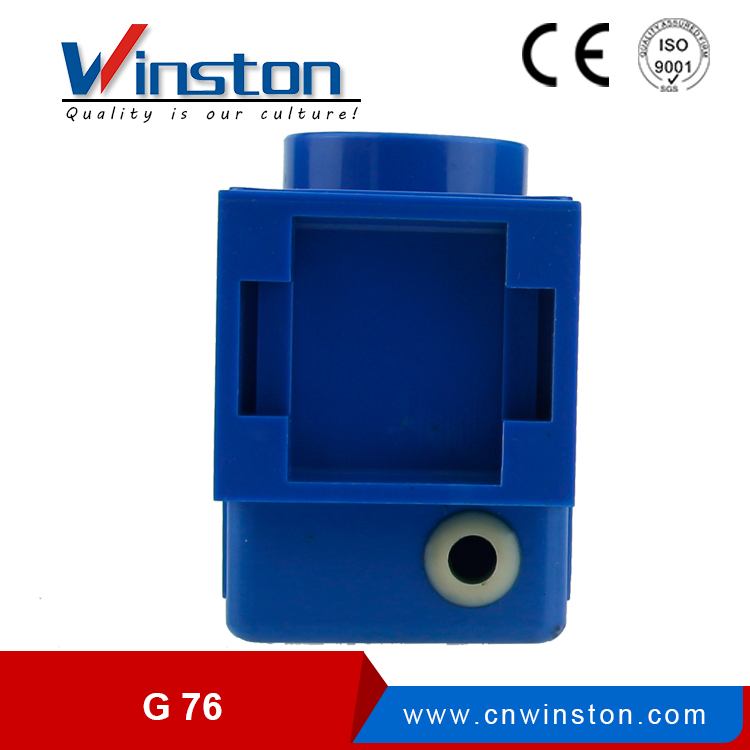

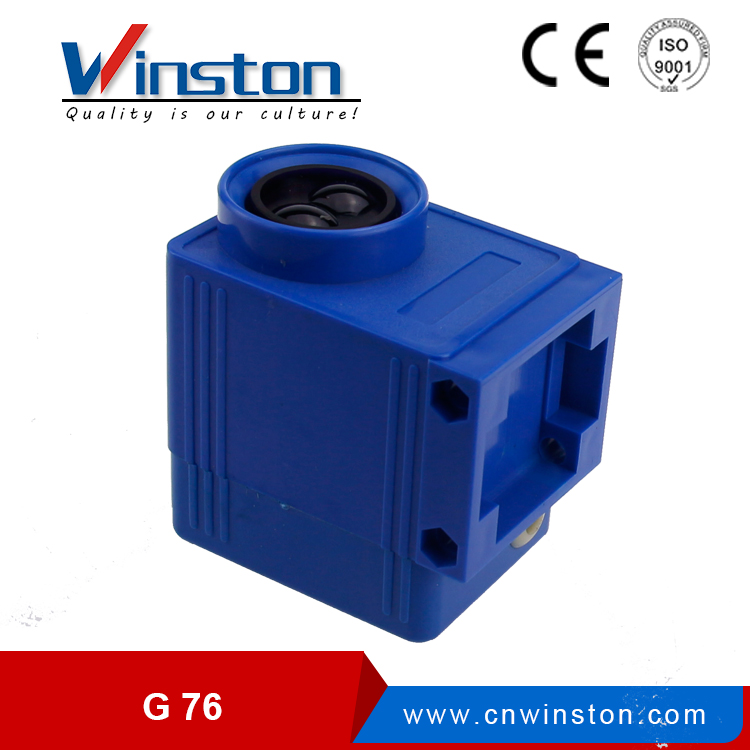

24V PNP photoelectric sensor G76

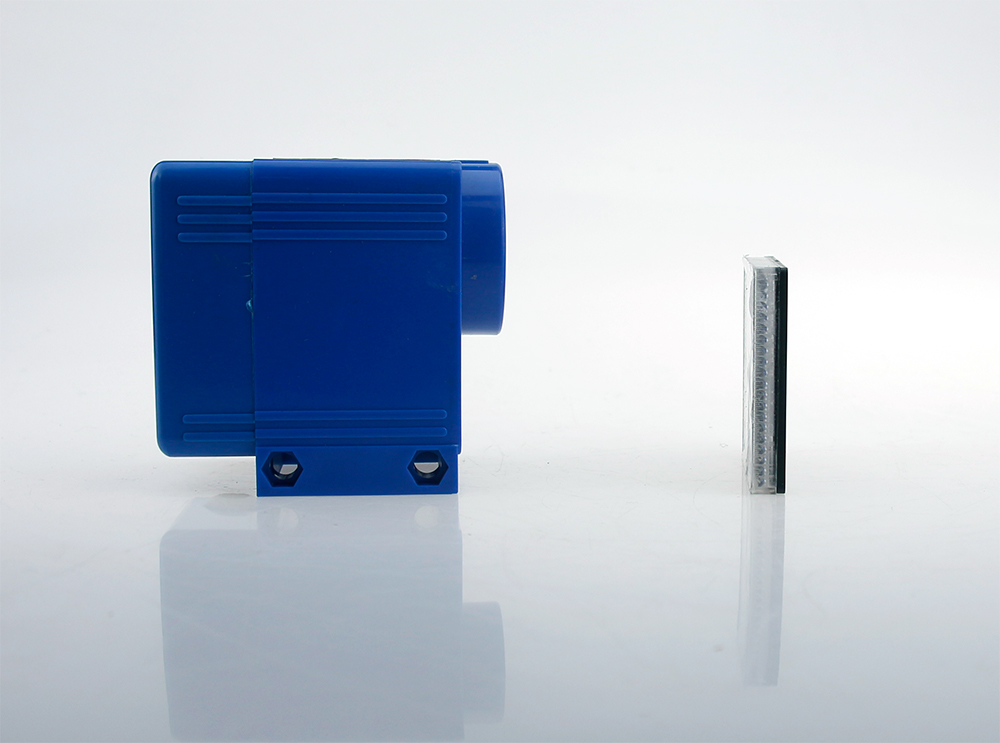

Though the object between the G76 photoelectric switch and reflector can reflect the light, it is much less efficient than the reflector so as to cut down reflected light.

Availability:

Quantity:



Inquire Add to Basket

Model:
G76
Brand:
Winston

G76 photoelectric switch
Principle of photoelectric switch
The working principle of the photoelectric switch is that when the beam emitted by the emitter is blocked or partly reflected by the object,the beam receiver where by makes a judgment and reacts.

photoelectric switch

Application photoelectric applicaiton photoelectric applicaiton(2

Model explanation of Photoelectric Sensor

1. G: Photoelectric sensor
2. Sub code No.(18, 50, 76.....)
3. Operating voltage(2: 90-250VAC ;3: 10-30VDC; 4: 12-240VDC/24-240VAC; 5: Special voltage)
4. Detection method( A: Diffuse type; B: Mirror reflex type; C: Through beam type)
5. Detection distance (05: 5cm ; 10: 10cm; 30: 30cm; 101: 10m)
6. Output method(N: NPN transistor output; P: PNP transistor output; J: Relay output; L: AC two-line output; S: NPN+PNP)
7. Output status(A: NO; B: NC; C: NO+NC)
8. Auxi function code(T1: Front delay; T2: Rear delay; Y: Oil proof; T: With connector; I: Special requirement)

Technical Parameters:

OVERALL DIMENSIONS
Diffuse type	Detection distance			1m
	10-30VDC	NPN	NO	G76-3A1NA
			NC	G76-3A1NB
			NO+NC	G76-3A1NC
		PNP	NO	G76-3A1PA
	90-250VAC		NC	G76-3A1PB
			NO+NC	G76-3A1PC
		SCR Contro Hable silicon	NO	G76-2A1LA
			NC	G76-2A1LB
		Relay output		G76-2A1JC
Retroreflective type	Detection distance			5m
	10-30VDC	NPN	NO	G76-3B5NA
			NC	G76-3B5NB
			NO+NC	G76-3B5NC
		PNP	NO	G76-3B5PA
	90-250VAC		NC	G76-3B5PB
			NO+NC	G76-3B5PC
		SCR Contro Hable silicon	NO	G76-2B5LA
			NC	G76-2B5LB
		Relay output		G76-2B5JC
Through beam	Detection distance			10m-50m
	10-30VDC	NPN	NO	G76-3C101NA
			NC	G76-3C101NB
			NO+NC	G76-3C101NC
		PNP	NO	G76-3C101PA
	90-250VAC		NC	G76-3C101PB
			NO+NC	G76-3C101PC
		SCR Contro Hable silicon	NO	G76-2C101LA
			NC	G76-2C101LB
		Relay output		G76-2C101JC
DC/SCR Control output				DC:200mA
DC/AC Consumption current				DC<15mA,AC<10mA
DC/AC Response time				AC/Dc<2ms
Directional angle				3^。-10^。
Detected object				transparent or opaque body
Working environment temperature				25℃～+55℃
Intensity of illumination of working environment				Sunlight under 1000LX incandescent lamp under 3000LX
Shell material				Plastic
Protection grade				IP54
