24V 2.5A Switch Mode Power Supply LPV 60W

Availability:
Quantity:
  • LPV-60W

  • Winston

Features

·Constant voltage style power supply

·180~264VAC AC input ·Small volume,low weight,high efficiency

·Protections:short circuit/over load/over voltage/over temp

·Cooling by free air convection

·Fully encapsulated with IP67 level

·100% full load burn-in test ·1 Year warranty

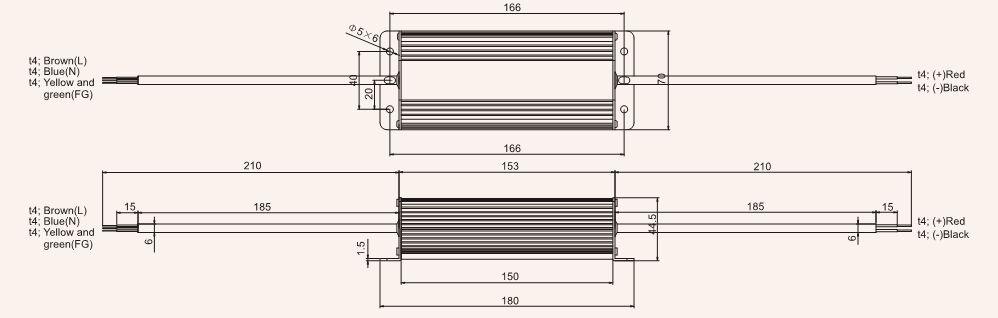

Dimension



       Model       LPV-60-12       LPV-60-24
       output       DC voltage       12V       24V
       Voltage tolerance       ±1%       ±1%
       Current range       0~5A       0~2.5A
       Ripple&noise       100mvp-p       150mvp-p
       input       Voltage range       90~264VAC,126~373VDC
       Frequency       47~63HZ
       AC current       1.6A/115VAC, 0.8A/230VAC
       Efficiency       81%       83%
       Inrush current       Cold start current 18A/115VAC, 36A/230VAC
       Leakage current       <1mA/240VAC
       protection       Over load       Rated output power 115%~135%start over load protection
       Protection type:hiccup mode,auto-recovery after fault condition is removed
       Over voltage       15.6~17.8V       30.6~33.2V
       Protection type:hiccup mode,auto-recovery after fault condition is removed
       Over temperature       Shell temp≥85℃,start over temperature protection
       Protection mode:cutoff output,auto-recovery after temperature become normal
       environment       Working temp,humidity       -10℃~+60℃,20%~90%RH
       Storage temp.humidity       -20℃~+85℃,10%~95%RH non condensing
       Withstand vibration       10~500HZ,2G 10min/1cycle,period for 60minutes,each axes
       safety       Withstand voltage       I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
       Isolated resistance       I/P-O/P、I/P-FG、O/P-FG:100M ohms/500VDC
       Fits       Safety standard       Fit UL1012,IP67 protect level

       tandard       EMC standard       Fit EN55022,CLASSA
       Others       Dimension       180*68*50mm (L*W*H)
       Weight/packing       0.82kg/18pcs/15kg/0.025 m³/0.87CUFT
       Note       1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
       2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
       3. Tolerance : includes set up tolerance, line regulation and load regulation.
